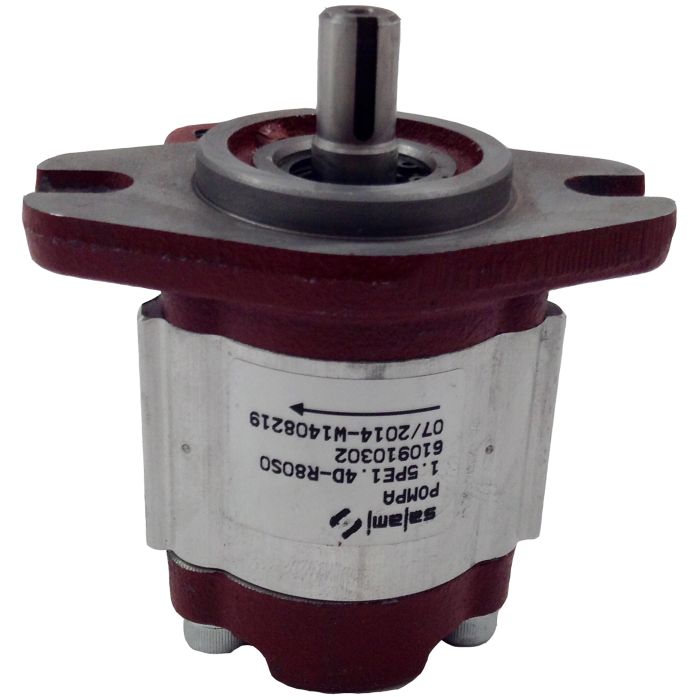

1.5PE Series Aluminium Gear Pump, 0.38 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Description & Features

Designed for reliable performance in demanding hydraulic systems, the Salami 1.5PE Series Aluminium Gear Pump delivers a displacement of 0.38 cu in/rev with a rated flow of 2.9 GPM at 3060 RPM. The 2-bolt SAE AA mounting flange and 1/2 in. straight keyed shaft (1.06 in. long) make for straightforward integration with standard SAE AA drive configurations.

Port connections consist of an SAE -8 side inlet and SAE -6 side outlet, with clockwise shaft rotation as standard. Rotation can be reversed by repositioning the drive and driven shafts and rotating the front flange. The continuous working pressure rating is 3335 PSI, with intermittent peaks supported up to 4205 PSI.

The aluminium construction is paired with an advanced bushing and seal arrangement suited to high-temperature and low-viscosity conditions. Standard Buna-N seals cover a temperature range of 5°F to 185°F; optional Viton (FPM) seals extend that range to -4°F to 230°F. Normal operating fluid viscosity runs 85 to 297 SUS.

SKU: 610910362

Supplier Part Number (MPN): 610910362

Alternate Part Numbers: 1.5PE6.5D-R80S0, C1MQ99

Specifications

Displacement 0.38	Displacement 0.38	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE AA	Mount 2-Bolt SAE AA	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Pressure Rating 3335	Rated Flow 2.90	Rated Flow 2.9	Rotation CW	Shaft 1/2 St. Keyed x 1.06 long SAE AA	Shaft 1/2 St. Keyed x 1.06 long SAE AA	Speed Rating 3060 RPM	Speed Rating 3060 RPM	Supplier Part Number 610910362	Alternate Part Numbers Alternate Part Number 1.5PE6.5D-R80S0, Alternate Part Number C1MQ99	Product Weight 5.04 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
610910302 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910312 1.5PE Series Gear Pump	0.13	0.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910322 1.5PE Series Gear Pump	0.17	1.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910342 1.5PE Series Gear Pump	0.25	1.8	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3400 RPM	3625
610910362 1.5PE Series Gear Pump	0.38	2.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3060 RPM	3335
610910372 1.5PE Series Gear Pump	0.46	3.4	Rectangular	1:8 Tapered	European Flange	CW	2805 RPM	2900
610910382 1.5PE Series Gear Pump	0.57	4.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2610
610910402 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910432 1.5PE Series Gear Pump	0.21	1.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910472 1.5PE Series Gear Pump	0.46	3.4	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2805 RPM	2900
610910492 1.5PE Series Gear Pump	0.67	4.7	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2465
610910512 1.5PE Series Gear Pump	0.13	0.9	4-Bolt SAE AA	1/2 St. Keyed x 1.5 long	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625

Product Questions & Answers (2)

Question by: Norm T on May 28, 2025, 1:22 PM

what's the rotation on this pump and is there any way to flip it if i need counterclockwise?

Answer by: Customer Support on May 29, 2025, 4:18 PM

Out of the box, it runs clockwise. Changing the rotation is possible though. You'd reverse the positions of the drive shaft and driven shaft, then rotate the front flange. No special tools or replacement parts required for that swap, just mechanical repositioning.

Question by: Frank S on Mar 28, 2025, 2:55 PM

What kind of operating temps can this handle?

Answer by: Customer Support on Mar 30, 2025, 6:49 AM

With the standard Buna-N seals, you're looking at a range of 5°F to 185°F. If you need something more robust, the FPM (Viton) seals will get you down to -4°F and up to 230°F.
