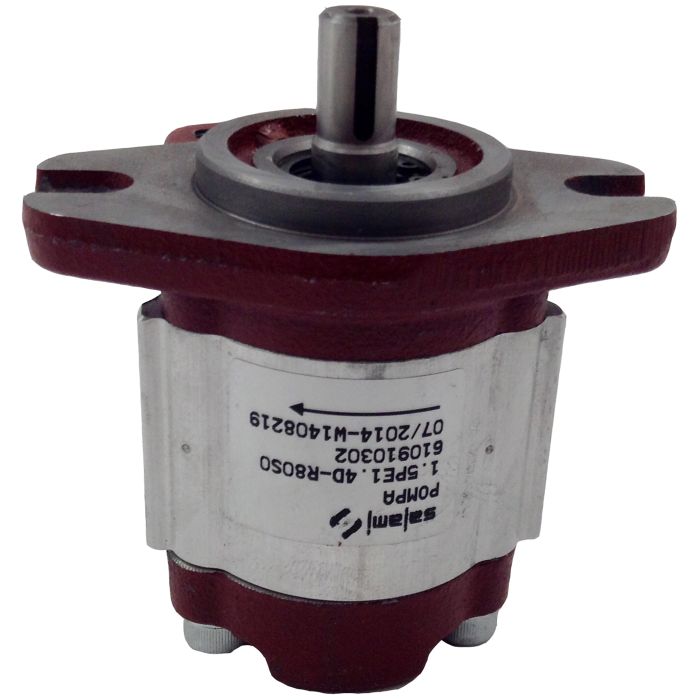

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, Rectangular Mounting Flange, 1:8 Tapered Shaft, European Flange, CW Rotation

Description & Features

Ideal for demanding industrial applications, the Salami 1.5PE Series Aluminium Gear Pump delivers high efficiency and durability. This pump features a 0.46 cu in/rev displacement and a 1:8 tapered shaft, ensuring reliable performance in severe environments. Designed with a rectangular mounting flange and European flange ports, it supports clockwise rotation, making it versatile for various configurations. The advanced bushing and seal design optimizes function even under high temperatures and low viscosity conditions. With a peak pressure capacity of up to 4205 PSI and support for intermittent speeds up to 5000 RPM, this gear pump is robust enough for intensive use.

Operating within a temperature range of 5°F to 185°F with Buna-N seals, or -4°F to 230°F with FPM seals, it adapts well to different thermal conditions. It requires a minimum fluid viscosity of 66 SUS and adheres to ISO 4406 filtration standards, ensuring long-lasting performance.

SKU: 610910372

Supplier Part Number (MPN): 610910372

Alternate Part Numbers: C1MV48

Specifications

Displacement 0.46	Displacement 0.46	Brand Salami S.P.A	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Mount Rectangular	Mount Rectangular	Ports European Flange	Ports European Flange	Pressure Rating 2900	Rated Flow 3.40	Rated Flow 3.4	Rotation CW	Shaft 1:8 Tapered	Shaft 1:8 Tapered	Speed Rating 2805 RPM	Speed Rating 2805 RPM	Supplier Part Number 610910372	Alternate Part Numbers Alternate Part Number C1MV48	Product Weight 8.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
610910302 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910312 1.5PE Series Gear Pump	0.13	0.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910322 1.5PE Series Gear Pump	0.17	1.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910342 1.5PE Series Gear Pump	0.25	1.8	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3400 RPM	3625
610910362 1.5PE Series Gear Pump	0.38	2.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3060 RPM	3335
610910372 1.5PE Series Gear Pump	0.46	3.4	Rectangular	1:8 Tapered	European Flange	CW	2805 RPM	2900
610910382 1.5PE Series Gear Pump	0.57	4.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2610
610910402 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910432 1.5PE Series Gear Pump	0.21	1.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910472 1.5PE Series Gear Pump	0.46	3.4	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2805 RPM	2900
610910492 1.5PE Series Gear Pump	0.67	4.7	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2465
610910512 1.5PE Series Gear Pump	0.13	0.9	4-Bolt SAE AA	1/2 St. Keyed x 1.5 long	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625

Product Questions & Answers (1)

Question by: Bonnie C on Nov 28, 2025, 9:39 PM

what's the temperature range on this pump if i'm running standard buna-n seals? asking cause we run these things pretty hard and summers get brutal out here

Answer by: Customer Support on Nov 30, 2025, 9:12 PM

Standard Buna-N seals cover an operating range of 5°F up to 185°F. If your environment pushes past that, the FPM (Viton) seal option handles anywhere from -4°F to 230°F. Worth knowing before you're chasing a seal failure in peak season.
