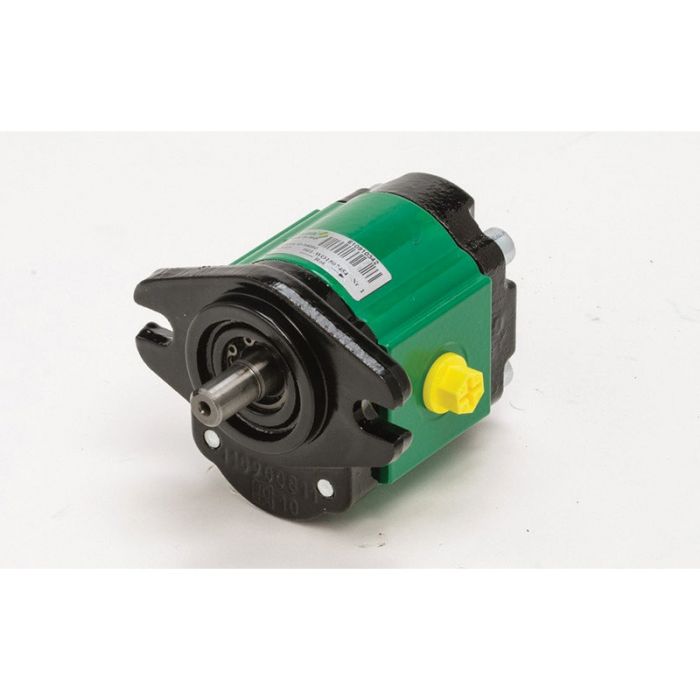

1.5PE Series Aluminium Gear Pump, 0.57 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

Description & Features

The Salami 1.5PE9.3D-R80S0 Pump is engineered for high efficiency and longevity in challenging environments. Its advanced bushing and seal configuration ensures optimal performance even under high temperature and low viscosity conditions. With a displacement of 0.57 cu in/rev this pump provides a reliable and consistent flow rate.

The 2-Bolt SAE AA mounting flange and SAE -10 side inlet and SAE -8 side outlet ports offer a secure and standardized connection. Designed for clockwise rotation the configuration can be altered by adjusting the driven and drive shafts along with the front flange position.

The pressure rating for continuous operation is 2610 PSI and peak pressures can reach up to 4205 PSI. The recommended fluid viscosity ranges from 66 SUS to 3635 SUS covering various operating conditions. The pump can operate at continuous speeds of up to 2550 RPM with intermittent speeds reaching 5000 RPM.

Temperature ratings vary with seal types: Buna-N seals withstand 5deg;F to 185deg;F while FPM (Viton) seals handle -4deg;F to 230deg;F. Constructed from aluminum the gear pump is resistant to wear and tear ensuring dependable performance over time.

MPN: C1MR11

Supplier Part Number: 610910382

Specifications

Brand
Salami
Dimensions
5.2 in L x 2.76 in W x 3.25 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4205 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE AA
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
1.5PE Series
Shaft
1/2 in Straight Keyed x 1.06 in Long SAE AA

Similar Products

Model Number Displacement Flow Rate Inlet Size Outlet Size Price Action
1.5PE Series Aluminium Gear Pump, 0.17 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910322 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910402 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.21 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910432 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.67 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910492 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 4-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.5 long Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910512 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.25 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910342 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, Rectangular Mounting Flange, 1:8 Tapered Shaft, European Flange, CW Rotation

610910372 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910302 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910472 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910312 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.38 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910362 1.5PE Series Gear Pump

610910332

610910332

610910352

610910352

610910392

610910392

610910412

610910412

610910422

610910422

610910442

610910442

610910452

610910452

610910462

610910462

610910482

610910482

610910502

610910502

610910522

610910522

610910532

610910532

610910542

610910542

610910552

610910552

610910562

610910562

610910572

610910572

610910582

610910582

610910592

610910592

Product Questions & Answers (1)

Question by: Dale P on Apr 21, 2025, 12:45 PM
Will this gear pump hold up if I'm running it pretty much all day, every day?
Answer by: Customer Support on Apr 22, 2025, 1:48 PM
For continuous operation, this pump is rated up to 2550 RPM. Just be sure to stay within the recommended fluid viscosity range of 66 SUS to 3635 SUS to keep it running smoothly.
