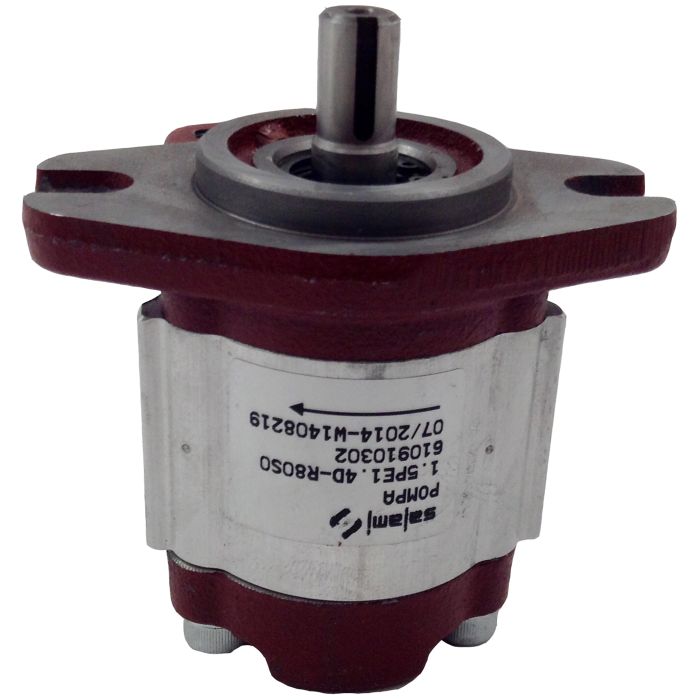

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Description & Features

Designed for demanding environments, the Salami 1.5PE Series Aluminium Gear Pump is engineered for high efficiency and durability. With a compact displacement of 0.09 cu in/rev, this pump features a robust 2-Bolt SAE AA mounting flange, ensuring secure installation. A 9T 20/40 DP spline and SAE AA shaft facilitate reliable power transfer, while SAE -8 side inlet and SAE -6 side outlet ports provide seamless fluid connectivity.

Operating at a continuous pressure rating of 3625 PSI and capable of handling peak pressures up to 4205 PSI, this gear pump is ideal for a range of industrial applications. Constructed with advanced bushing and seal configurations, it performs optimally across a broad temperature range with Buna-N or FPM seals, making it suitable for both high-temperature and low-viscosity conditions.

SKU: 610910402

Supplier Part Number (MPN): 610910402

Alternate Part Numbers: C1MV49

Specifications

Displacement 0.09	Displacement 0.09	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE AA	Mount 2-Bolt SAE AA	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Pressure Rating 3625	Rated Flow 0.60	Rated Flow 0.6	Rotation CW	Shaft 9T 20/40 DP Spline, SAE AA	Shaft 9T 20/40 DP Spline, SAE AA	Speed Rating 4250 RPM	Speed Rating 4250 RPM	Supplier Part Number 610910402	Alternate Part Numbers Alternate Part Number C1MV49	Product Weight 5.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
610910302 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910312 1.5PE Series Gear Pump	0.13	0.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910322 1.5PE Series Gear Pump	0.17	1.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910342 1.5PE Series Gear Pump	0.25	1.8	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3400 RPM	3625
610910362 1.5PE Series Gear Pump	0.38	2.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3060 RPM	3335
610910372 1.5PE Series Gear Pump	0.46	3.4	Rectangular	1:8 Tapered	European Flange	CW	2805 RPM	2900
610910382 1.5PE Series Gear Pump	0.57	4.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2610
610910402 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910432 1.5PE Series Gear Pump	0.21	1.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910472 1.5PE Series Gear Pump	0.46	3.4	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2805 RPM	2900
610910492 1.5PE Series Gear Pump	0.67	4.7	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2465
610910512 1.5PE Series Gear Pump	0.13	0.9	4-Bolt SAE AA	1/2 St. Keyed x 1.5 long	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625

Product Questions & Answers (2)

Question by: Curt S on Nov 20, 2025, 3:23 PM

rotation on this one, is it clockwise or can it be swapped to counterclockwise if needed?

Answer by: Customer Support on Nov 22, 2025, 8:49 AM

Clockwise is the standard rotation as it comes. Switching it over is possible by reversing the position of the drive shaft and driven shaft and rotating the front flange. No special parts required for that change, just a repositioning during setup.

Question by: Troy B on Oct 11, 2025, 6:28 PM

I need a pump that can handle some heat. What's the highest temp this one can take?

Answer by: Customer Support on Oct 12, 2025, 9:36 PM

This pump can handle temperatures up to 185°F with the standard Buna-N seals. If you need higher temperature resistance, you can get it with FPM (Viton) seals which allow it to operate up to 230°F.
