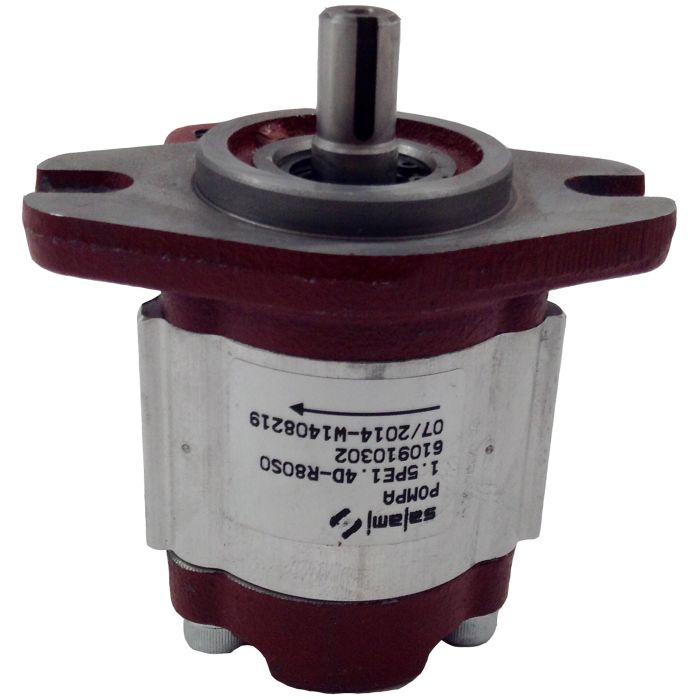

1.5PE Series Aluminium Gear Pump, 0.21 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Description & Features

Designed for high-efficiency performance in demanding hydraulic circuits, the Salami 1.5PE Series Aluminium Gear Pump (0.21 cu in/rev displacement) delivers a rated flow of 1.6 GPM at 3825 RPM with clockwise shaft rotation. The 2-bolt SAE AA mounting flange and 9T 20/40 DP spline SAE AA shaft provide a compact, standardized interface suited to a wide range of mobile and industrial hydraulic systems.

Port configuration consists of an SAE -8 side inlet and SAE -6 side outlet. The aluminium construction keeps weight low while the internal bushing and seal design maintains reliable performance across high-temperature and low-viscosity fluid conditions. Standard Buna-N seals cover an operating temperature range of 5°F to 185°F; optional Viton seals extend that range to 230°F. Continuous working pressure is rated at 3625 PSI, with peak pressures supported up to 4205 PSI. Rotation is field-reversible by repositioning the drive and driven shafts and rotating the front flange.

SKU: 610910432

Supplier Part Number (MPN): 610910432

Alternate Part Numbers: C1MV52

Specifications

Brand
Salami
Dimensions
4.55 in L x 2.76 in W x 3.25 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4205 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE AA
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
1.5PE Series
Shaft
9 Tooth 20/40 DP Splined, SAE AA

Similar Products

Model Number Displacement Flow Rate Inlet Size Outlet Size Price Action
1.5PE Series Aluminium Gear Pump, 0.17 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910322 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910402 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.67 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910492 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 4-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.5 long Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910512 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.25 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910342 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.57 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910382 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, Rectangular Mounting Flange, 1:8 Tapered Shaft, European Flange, CW Rotation

610910372 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910302 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910472 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910312 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.38 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910362 1.5PE Series Gear Pump

610910332

610910332

610910352

610910352

610910392

610910392

610910412

610910412

610910422

610910422

610910442

610910442

610910452

610910452

610910462

610910462

610910482

610910482

610910502

610910502

610910522

610910522

610910532

610910532

610910542

610910542

610910552

610910552

610910562

610910562

610910572

610910572

610910582

610910582

610910592

610910592

Product Questions & Answers (2)

Question by: Wes M on Jun 2, 2025, 1:01 PM
pump says CW rotation on it, can that be switched around if my setup needs it to go the other way?
Answer by: Customer Support on Jun 3, 2025, 8:50 PM
Rotation on this pump can be changed. You reverse the position of the drive shaft and driven shaft, then rotate the front flange. It's a field-adjustable configuration, so you're not locked into clockwise if your application runs counterclockwise.
Question by: Warren M on Jul 10, 2025, 2:50 PM
Will this gear pump hold up okay in a hydraulic system running around 3000 PSI on a regular basis?
Answer by: Customer Support on Jul 11, 2025, 3:56 PM
This pump is rated for continuous operation up to 3625 PSI, so it should be suitable for your system's working pressure. Just be sure your peak pressures don't exceed 4205 PSI.
