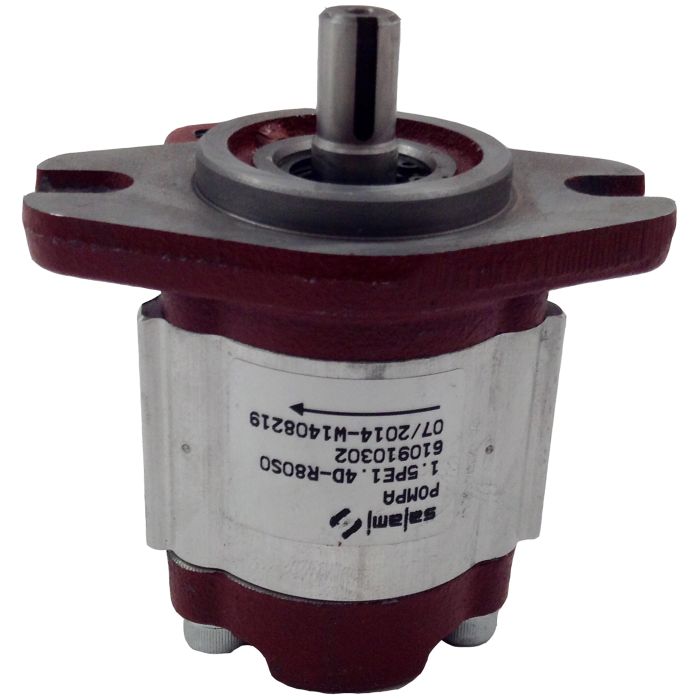

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 4-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.5 long Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Description & Features

This Salami 1.5PE Series Aluminium Gear Pump features a displacement of 0.13 cu in/rev and a 4-Bolt SAE AA mounting flange. Designed for robust performance, it includes an advanced bushing and seal configuration.

The 1.5PE Series Aluminium Gear Pump has a 1/2 St. Keyed x 1.5 long shaft, SAE -8 side inlet, and SAE -6 side outlet, with CW rotation. It has a pressure rating of 3625 PSI and a speed rating of 4250 RPM.

SKU: 610910512

Supplier Part Number (MPN): 610910512

Alternate Part Numbers: C1MR14

Specifications

Brand
Salami
Dimensions
4.84 in L x 2.76 in W x 3.25 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4205 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
4-Bolt SAE AA
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
1.5PE Series
Shaft
1/2 in Straight Keyed x 1.5 in Long

Similar Products

Model Number Displacement Flow Rate Inlet Size Outlet Size Price Action
1.5PE Series Aluminium Gear Pump, 0.17 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910322 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910402 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.21 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910432 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.67 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910492 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.25 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910342 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.57 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910382 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, Rectangular Mounting Flange, 1:8 Tapered Shaft, European Flange, CW Rotation

610910372 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910302 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910472 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910312 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.38 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910362 1.5PE Series Gear Pump

610910332

610910332

610910352

610910352

610910392

610910392

610910412

610910412

610910422

610910422

610910442

610910442

610910452

610910452

610910462

610910462

610910482

610910482

610910502

610910502

610910522

610910522

610910532

610910532

610910542

610910542

610910552

610910552

610910562

610910562

610910572

610910572

610910582

610910582

610910592

610910592

Product Questions & Answers (1)

Question by: Troy S on Jun 21, 2025, 8:49 AM
pump says CW rotation -- can that be switched if my setup runs the opposite direction?
Answer by: Customer Support on Jun 23, 2025, 6:18 AM
Rotation on this pump can be reversed by repositioning the drive and driven shafts and rotating the front flange. It ships standard in clockwise, but the design does allow for a counterclockwise conversion without swapping out the whole unit.
