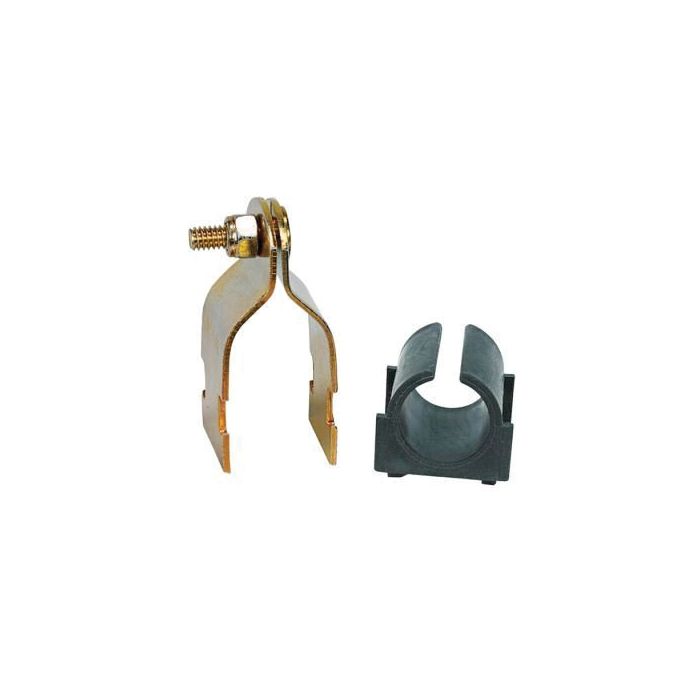

100-200 Series Pipe & Tubing Support Clamp, 1/4 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The Hydra-Zorb 100-200 Series Pipe & Tubing Support Clamp is designed for efficient installation and secure support of 1/4 inch tubing in industrial settings. Constructed with a zinc-plated steel clamp, steel Nylock nut, and a steel weld stud/bolt, this robust assembly ensures durability and long-lasting performance. Its user-friendly design allows for easy addition or removal of fluid conductors without disturbing adjacent components, making it ideal for dynamic systems where flexibility is crucial.

With options available in various materials such as galvanized steel, 304/316 stainless steel, and aluminum, this clamp series offers versatility to meet diverse application needs. The cushion is rated for temperatures ranging from -65°F to 275°F, ensuring reliability across a wide range of operating conditions. Its compact dimensions, with key attributes like A: 1.11, B: 0.22, and C: 0.075, make it suitable for tight spaces while maintaining structural integrity.

SKU: 100025

Supplier Part Number (MPN): 100025

Alternate Part Numbers: C1EX25, MI-02081884, MINO-01771X10350

Specifications

A 1.11	B 0.22	C 0.08	D 0.62	Brand ZSI	Brand ZSI	Pack Size 1.00	UOM EA	Materials Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	Size 1/4 inch Tubing	Supplier Part Number 100025	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1EX25, Alternate Part Number MI-02081884, Alternate Part Number MINO-01771X10350	Product Weight 0.11 lbs

Similar Products

Model Number	Size	Materials	A	B	C	D
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11	0.22	0.075	0.62
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11	0.22	0.075	0.62
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24	0.28	0.075	0.75
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36	0.34	0.075	0.87
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.5	0.41	0.075	1
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78	0.53	0.075	1.33
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78	0.53	0.075	1.33
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91	0.58	0.075	1.45
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03	0.66	0.105	1.66
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16	0.72	0.105	1.79
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3	0.78	0.105	1.92
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3	0.78	0.105	1.92
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.75	0.91	0.119	2.22

Product Questions & Answers (2)

Question by: Marvin T on Oct 1, 2025, 11:10 AM

what temp range is the cushion rated for on these clamps? got some lines runnin through a pretty hot area and need to know if it'll hold up

Answer by: Customer Support on Oct 2, 2025, 1:59 PM

The cushion on these carries a rating of -65°F up to 275°F. That covers most standard hydraulic and pneumatic line installations, including spots that see elevated ambient heat from nearby equipment or engine compartments.

Question by: Ross M on Jul 31, 2025, 4:07 PM

got 1/4 inch tubing, is this the right clamp size for it or am i gonna be fighting it

Answer by: Customer Support on Aug 2, 2025, 6:25 AM

For 1/4 inch tubing, this clamp is sized for that exact tube size, so you are matching it correctly.
