100-200 Series Pipe & Tubing Support Clamp, 3/8 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

Designed for 3/8 inch tubing, the 100-200 Series Pipe & Tubing Support Clamp from Hydra-Zorb provides reliable fluid conductor support in industrial hydraulic installations. The clamp body is zinc plated steel, paired with a steel Nylock nut and a steel weld stud for a secure, vibration-resistant assembly.

Part of the Hydra-Zorb Support Clamps product line, this clamp allows fluid conductors to be removed or added without disturbing adjacent lines, a practical advantage in dense routing environments. Installation is straightforward, reducing time on the line. The cushion carries a temperature rating of -65°F to 275°F, making it suitable for a wide range of industrial thermal conditions.

Channel compatibility spans single and back-to-back configurations, with base channel available in multiple gauges and materials. Clamp variants across the series are offered in galvanized steel, stainless steel grades 304 and 316, and aluminum, providing flexibility for different environmental requirements.

SKU: 100037

Supplier Part Number (MPN): 100037

Alternate Part Numbers: C1AG11

Specifications

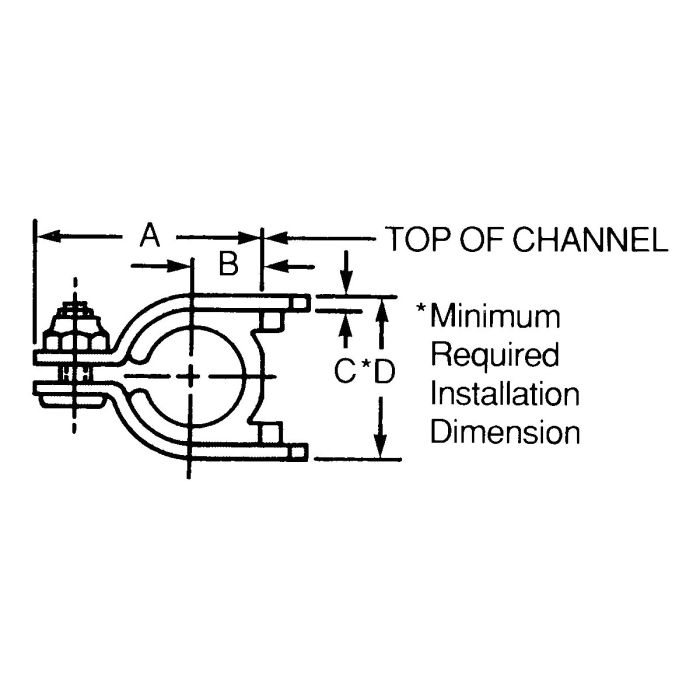

Brand Hydra-Zorb	a Dimensions 1.24 in	b Dimensions 0.28 in	Body Material 304 Stainless Steel	c Dimensions 0.075 in	d Dimensions 3/4 in	Finish Zinc Trivalent-Plated	Gasket Material Thermoplastic Elastomer	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Size	Materials	a Dimensions	b Dimensions	c Dimensions	d Dimensions
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36 in	0.34 in	0.075 in	0.87 in
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1-1/2 in	0.41 in	0.075 in	1 in
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91 in	0.58 in	0.075 in	1.45 in
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03 in	0.66 in	0.105 in	1.66 in
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16 in	0.72 in	0.105 in	1.79 in
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2-3/4 in	0.91 in	0.119 in	2.22 in

Product Questions & Answers (2)

Question by: Lee S on Mar 4, 2026, 3:51 PM

does this clamp work for 3/8 tubing or is that just the thread size they're referrin to?

Answer by: Customer Support on Mar 6, 2026, 9:54 AM

The 3/8 inch measurement refers to the tubing size this clamp is built to support, not the thread or hardware dimensions. It holds 3/8 inch fluid conductors in place and is part of the 100-200 Series lineup from Hydra-Zorb. The clamp body is zinc plated steel, and it comes with a steel weld stud and a steel Nylock nut, so everything you need for a secure mount is included in the assembly.

Question by: Eddie C on May 14, 2025, 6:46 AM

What size tubing does this clamp support?

Answer by: Customer Support on May 15, 2025, 8:39 PM

This clamp assembly is made for 3/8 inch tubing.
