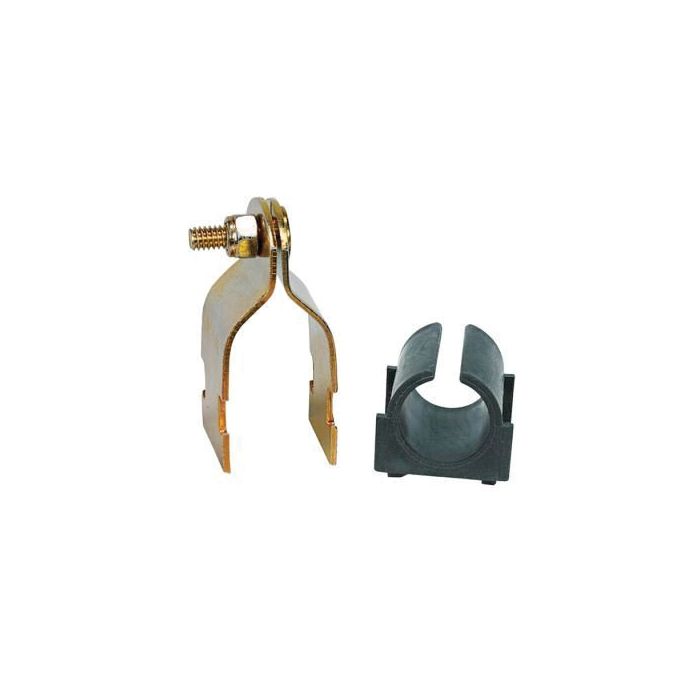

100-200 Series Pipe & Tubing Support Clamp, 1/2 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The Hydrazorb Support Clamps are essential for robust pipe and tubing systems. Designed with 1/2 inch tubing, each clamp is crafted from durable zinc plated steel, ensuring longevity and resilience in various applications. The nut features a reliable steel Nylock, while the stud is a sturdy steel weld type.

These clamps provide efficient support and stability, allowing for seamless fluid conductor management. They enable the addition or removal of conductors without affecting adjacent ones.

The temperature range of the cushion is rated from -65deg;F to 275deg;F, making it suitable for diverse environments. These support clamps are available in multiple materials, including galvanized steel, 304/316 stainless steel, and aluminum. Multiple base channel options in various lengths and materials enhance their versatility.

Fast and simple to install, the Hydrazorb Support Clamps are designed for dependable performance in industrial settings.

Supplier Part Number: 100050

Specifications

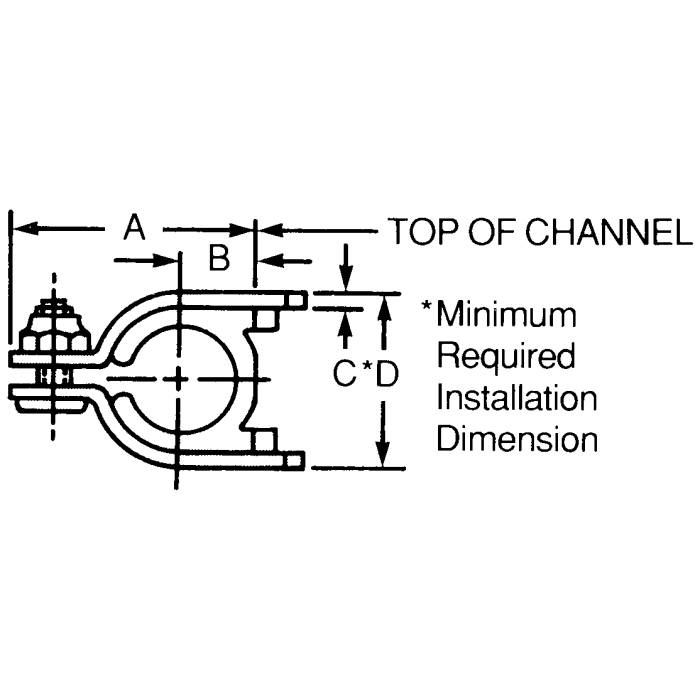

Brand Hydra-Zorb	a Dimensions 1.36 in	b Dimensions 0.34 in	Body Material 304 Stainless Steel	c Dimensions 0.075 in	d Dimensions 0.87 in	Finish Zinc Trivalent-Plated	Gasket Material Thermoplastic Elastomer	Size 1/2 in	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Size	Materials	a Dimensions	b Dimensions	c Dimensions	d Dimensions
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1-1/2 in	0.41 in	0.075 in	1 in
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91 in	0.58 in	0.075 in	1.45 in
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03 in	0.66 in	0.105 in	1.66 in
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16 in	0.72 in	0.105 in	1.79 in
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2-3/4 in	0.91 in	0.119 in	2.22 in

Product Questions & Answers (2)

Question by: Hubert H on Oct 9, 2025, 6:40 PM

these clamps rated for any kind of temperature extremes, or are they just meant for mild shop conditions?

Answer by: Customer Support on Oct 11, 2025, 6:28 AM

The cushion on these clamps handles a range from -65°F all the way up to 275°F, so they hold up well in both cold environments and warmer industrial settings. That's a solid working range for most plant and equipment applications without any special accommodations.

Question by: Rusty T on Aug 1, 2025, 9:52 AM

got 1/2 inch tubing on a skid, is this clamp the right size or is that 1/2 something else?

Answer by: Customer Support on Aug 2, 2025, 2:43 PM

The size on this one is 1/2 inch tubing. It is meant to support and secure tubing in that size range in a pipe and tubing run.
