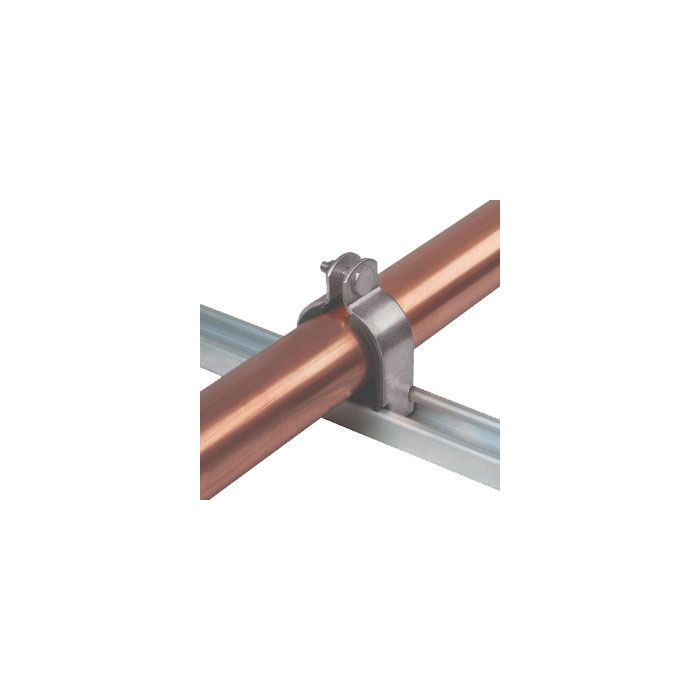

100-200 Series Pipe & Tubing Support Clamp, 5/8 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The 100-200 Series Pipe & Tubing Support Clamp ensures the secure positioning of 5/8 inch tubing with its robust construction.

Constructed from zinc-plated steel, the support clamp is built to withstand various environmental conditions.

The steel Nylock nut and steel weld stud offer reliable performance and durability.

This support clamp allows for easy removal or addition of fluid conductors without disturbing adjacent parts.

Fast and straightforward installation is a key feature, making it suitable for many industrial applications.

The clamp's cushion operates within a temperature range of -65deg;F to 275deg;F, making it versatile for different settings.

Available in multiple materials including 304/316 stainless steel, galvanized steel, and aluminum, the support clamp meets diverse operational requirements.

**Supplier Part Number:** 100062

Specifications

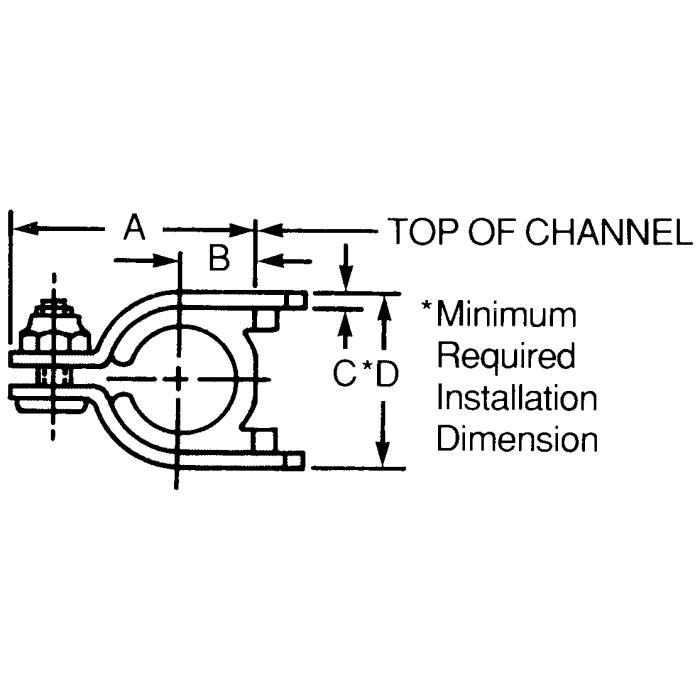

A 1.50	B 0.41	C 0.08	D 1	Brand ZSI	Brand Hydra-Zorb	Pack Size 1.00	UOM EA	Materials Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	Size 5/8 inch Tubing	Supplier Part Number 100062	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1AG13	Product Weight 0.14 lbs

Similar Products

Model Number	Size	Materials	A	B	C	D
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11	0.22	0.075	0.62
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11	0.22	0.075	0.62
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24	0.28	0.075	0.75
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36	0.34	0.075	0.87
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.5	0.41	0.075	1
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78	0.53	0.075	1.33
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78	0.53	0.075	1.33
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91	0.58	0.075	1.45
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03	0.66	0.105	1.66
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16	0.72	0.105	1.79
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3	0.78	0.105	1.92
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3	0.78	0.105	1.92
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.75	0.91	0.119	2.22

Product Questions & Answers (2)

Question by: Jimmy C on Mar 25, 2025, 7:58 AM

what temp range does the cushion on this clamp hold up to? got some lines running near heat sources and want to make sure it ain't gonna fall apart on me

Answer by: Customer Support on Mar 27, 2025, 7:41 AM

The cushion is rated from -65°F up to 275°F, so it can handle a fair amount of heat without breaking down. For most industrial setups with lines running near warm equipment, that range covers you pretty well on both ends.

Question by: Troy J on Jun 22, 2025, 7:07 PM

Trying to clamp down 5/8 tubing, is this the right size or am i gonna be fighting it?

Answer by: Customer Support on Jun 24, 2025, 3:24 PM

It is made to support 5/8 inch tubing, so you are matching the clamp to that tubing size rather than forcing it to work on something else.
