100-200 Series Pipe & Tubing Support Clamp, 3/4 inch Tubing, Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud

Description & Features

Constructed entirely from corrosion-resistant stainless steel, this clamp is built for demanding industrial environments where material integrity matters. The 100-200 Series Pipe & Tubing Support Clamp is sized for 3/4 inch tubing and features a 316 SS clamp body, an SS Nylock nut, and an SS weld stud for a secure, vibration-resistant assembly. The cushion is rated from -65°F to 275°F, making it suitable for a wide range of thermal conditions.

Designed under the Hydrazord Support Clamps product line by Zsi, this clamp allows fluid conductors to be removed or added without disturbing adjacent conductors, a practical advantage in multi-line installations. Installation is fast and straightforward. Compatible base channels are available in single and back-to-back configurations, in materials including 14 ga. steel, 14 ga. 304 stainless, 14 ga. 316 stainless, and 6061-T6 aluminum, with channel lengths from 36 to 240 inches available in most styles.

The catalog number for this product is C1EX32.

SKU: 100075-4-656

Supplier Part Number (MPN): 100075-4-656

Alternate Part Numbers: C1EX32, MI-08763815, MINO-01771X86321

Specifications

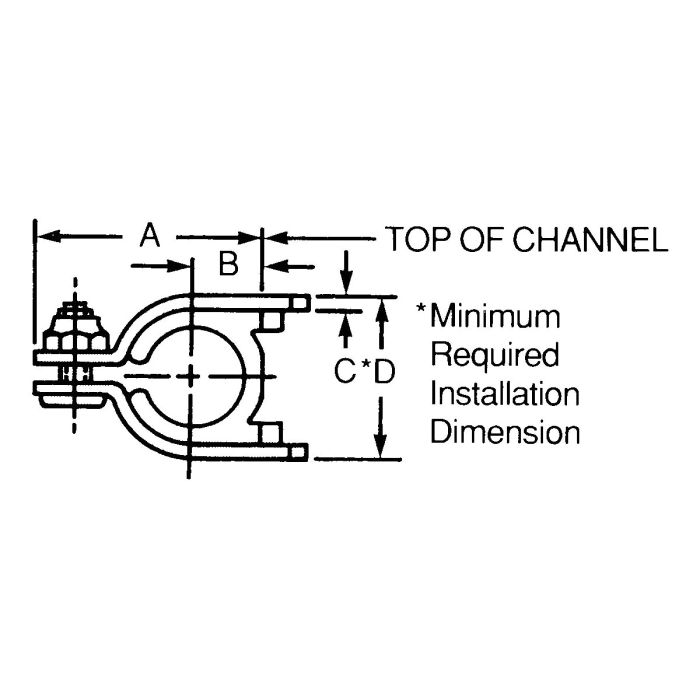

Brand Hydra-Zorb	a Dimensions 1.78 in	b Dimensions 0.53 in	Body Material 316 Stainless Steel	c Dimensions 0.075 in	d Dimensions 1.33 in	Finish Zinc Trivalent-Plated	Gasket Material Thermoplastic Elastomer	Size 3/4 in	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Size	Materials	a Dimensions	b Dimensions	c Dimensions	d Dimensions
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36 in	0.34 in	0.075 in	0.87 in
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1-1/2 in	0.41 in	0.075 in	1 in
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91 in	0.58 in	0.075 in	1.45 in
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03 in	0.66 in	0.105 in	1.66 in
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16 in	0.72 in	0.105 in	1.79 in
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2-3/4 in	0.91 in	0.119 in	2.22 in

Product Questions & Answers (2)

Question by: Todd J on Jan 19, 2026, 9:13 PM

clamp says 316 stainless all the way through or just the body? trying to figure out if the hardware's gonna hold up in a wash-down area

Answer by: Customer Support on Jan 21, 2026, 7:39 AM

The clamp body, nut, and stud are all stainless. The clamp itself is 316 SS, the nut is a stainless Nylock, and the stud is a stainless weld stud, so you're not mixing metals and introducing a weak point at the fastener.

Question by: Brenda M on Nov 14, 2025, 4:56 PM

got 3/4 tubing on a skid, is this clamp the right size or is that 3/4 pipe size?

Answer by: Customer Support on Nov 16, 2025, 6:27 AM

Fit is based on 3/4 inch tubing. This part is a 100-200 Series support clamp sized for 3/4 inch tubing.
