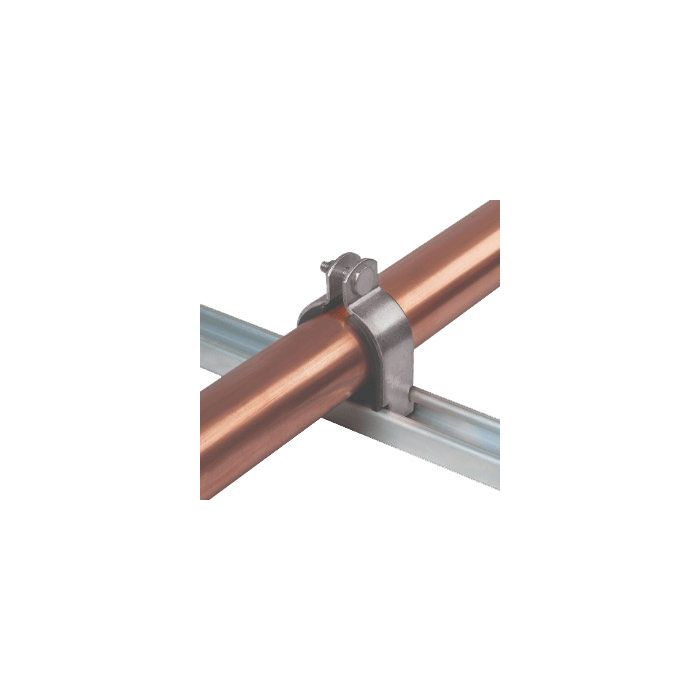

100-200 Series Pipe & Tubing Support Clamp, 3/4 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The 100-200 Series Pipe & Tubing Support Clamp, 3/4 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud ensures reliable performance in industrial environments.

Designed by Hydra-Zorb Co, this robust clamp assembly is crafted from zinc plated steel, providing durability and strength. The steel Nylock nut and steel weld stud enhance stability and provide secure fittings.

This clamp facilitates easy addition or removal of fluid conductors without disrupting the adjacent ones, ensuring efficient maintenance and operations. The cushion component is rated for temperatures ranging from -65deg;F to 275deg;F, making it suitable for diverse industrial applications.

Clamps come in several material options, including galvanized steel, 304/304 stainless, 316 stainless, and aluminum. It is available in single and back-to-back base channel configurations, manufactured from 12 ga. steel, 14 ga. steel, 14 ga. 304 stainless, 14 ga. 316 stainless, and 6061T6 aluminum, with channel lengths ranging from 36 to 240 inches.

Supplier Part Number: 100075

Specifications

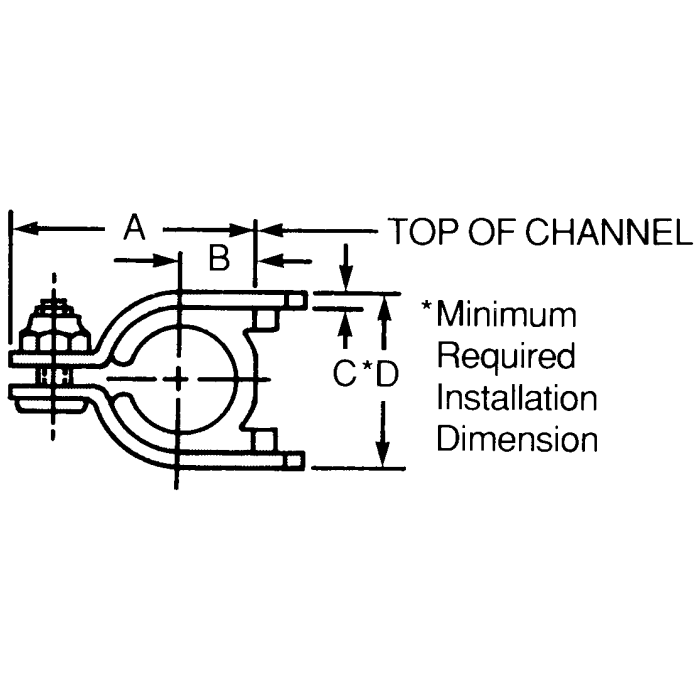

Brand Hydra-Zorb	a Dimensions 1.78 in	b Dimensions 0.53 in	Body Material Carbon Steel	c Dimensions 0.075 in	d Dimensions 1.33 in	Finish Trivalent Zinc-Plated	Locking Style Bolt	Size 3/4 in	Suitable For Use With Uninsulated Tubes/Pipes	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Size	Materials	a Dimensions	b Dimensions	c Dimensions	d Dimensions
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36 in	0.34 in	0.075 in	0.87 in
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1-1/2 in	0.41 in	0.075 in	1 in
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91 in	0.58 in	0.075 in	1.45 in
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03 in	0.66 in	0.105 in	1.66 in
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16 in	0.72 in	0.105 in	1.79 in
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2-3/4 in	0.91 in	0.119 in	2.22 in

Product Questions & Answers (2)

Question by: Janet C on Sep 28, 2025, 1:07 PM

what kinda temp range does the cushion hold up to on these clamps? got some lines runnin through a pretty warm area of the plant

Answer by: Customer Support on Sep 30, 2025, 11:40 AM

The cushion on this clamp is rated from -65°F all the way up to 275°F, so it handles a solid range on both ends. For most industrial environments, including areas with elevated ambient heat, that upper limit gives you good working room before you'd have any concerns about the cushion material breaking down.

Question by: Curt E on Dec 19, 2025, 7:02 AM

got a 3/4 tube run to tidy up. is this clamp actually sized for 3/4 inch tubing?

Answer by: Customer Support on Dec 20, 2025, 8:06 PM

It is made for 3/4 inch tubing. It is a 100-200 Series support clamp assembly sized specifically for that tube size.
