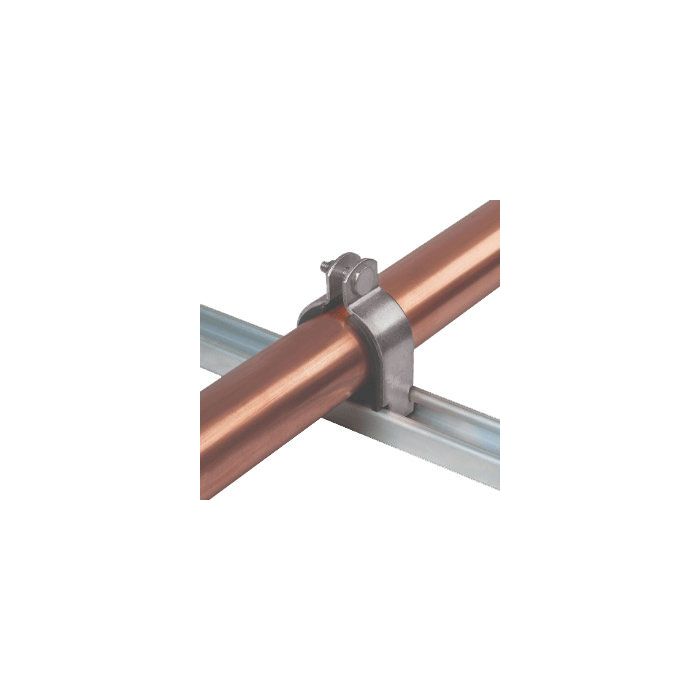

100-200 Series Pipe & Tubing Support Clamp, 7/8 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The 100-200 Series Pipe & Tubing Support Clamp provides robust support for 7/8 inch tubing. Constructed with a zinc plated steel clamp, Steel Nylock nut, and steel weld stud, this product ensures reliable performance in diverse industrial environments.

Supporting fluid conductors without disturbing adjacent ones is facilitated by its design, making it a practical choice for system maintenance.

Fast and uncomplicated installation is a standout feature, ensuring minimal downtime during setup.

The clamp is available in various materials, including zinc plated steel, galvanized steel, 304/304 stainless, 316 stainless, and aluminum.

It supports base channels in single and back-to-back configurations, with channel lengths ranging from 36 to 240 inches.

Cushions are rated for temperatures from -65deg;F to 275deg;F, enhancing operational efficiency under varied conditions.

Supplier Part Number: 100087

Specifications

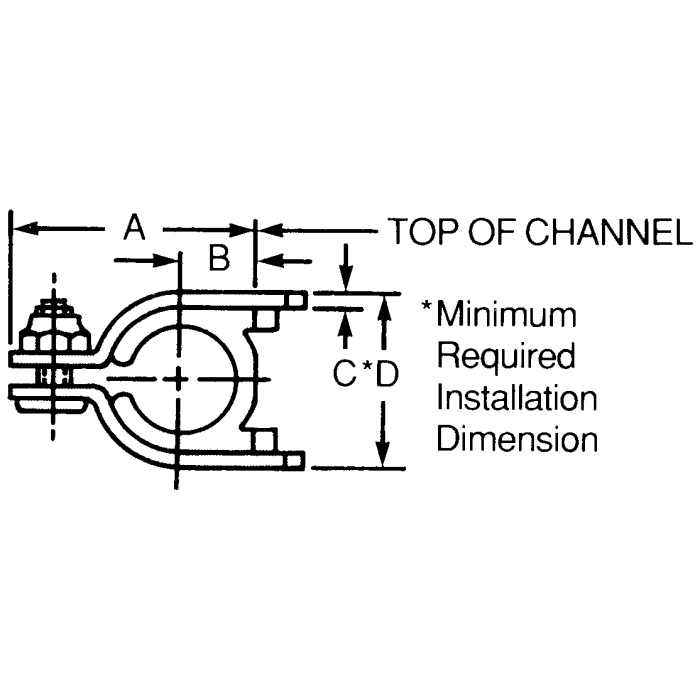

A 1.91	B 0.58	C 0.08	D 1.45	Brand ZSI	Brand Hydra-Zorb	Pack Size 1.00	UOM EA	Materials Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	Size 7/8 inch Tubing	Supplier Part Number 100087	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1AG17, Alternate Part Number MI-02218074, Alternate Part Number MINO-01771X00111	Product Weight 0.18 lbs

Similar Products

Model Number	Size	Materials	A	B	C	D
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11	0.22	0.075	0.62
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11	0.22	0.075	0.62
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24	0.28	0.075	0.75
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36	0.34	0.075	0.87
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.5	0.41	0.075	1
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78	0.53	0.075	1.33
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78	0.53	0.075	1.33
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91	0.58	0.075	1.45
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03	0.66	0.105	1.66
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16	0.72	0.105	1.79
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3	0.78	0.105	1.92
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3	0.78	0.105	1.92
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.75	0.91	0.119	2.22
