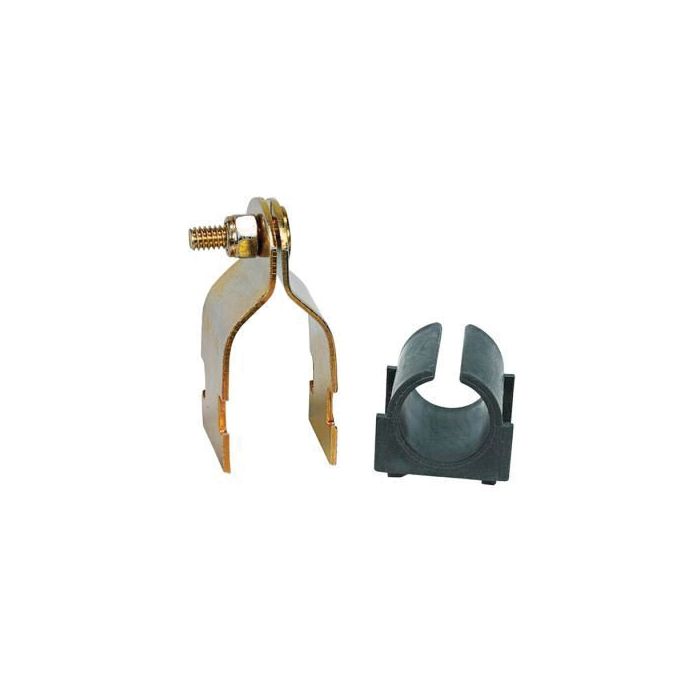

100-200 Series Pipe & Tubing Support Clamp, 1 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The 100-200 Series Pipe & Tubing Support Clamp, 1 inch Tubing, features a zinc plated steel clamp, a steel Nylock nut, and a steel weld stud. Designed for efficient assembly, it allows fluid conductors to be easily added or removed without disturbing adjacent conductors.

Constructed with durability in mind, the clamp can withstand temperatures ranging from -65deg;F to 275deg;F, ensuring reliable performance in various environments. Available in single and back-to-back base channel configurations, options include 12 ga. steel, 14 ga. steel, 14 ga. 304 stainless, 14 ga. 316 stainless, and 6061T6 aluminum.

Installation is fast and simple, suitable for industrial applications where robust support is needed.

Supplier Part Number: 100100

Specifications

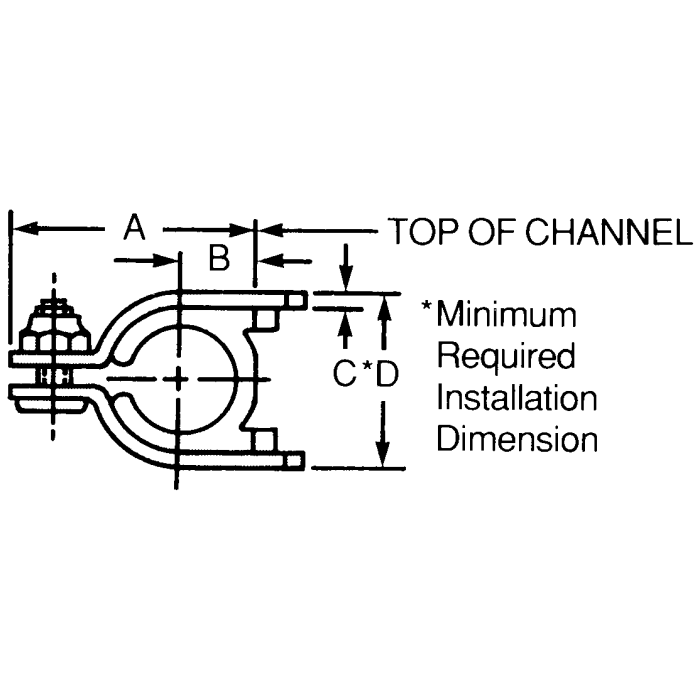

Brand Hydra-Zorb	a Dimensions 2.03 in	b Dimensions 0.66 in	Body Material 304 Stainless Steel	c Dimensions 0.105 in	d Dimensions 1.66 in	Finish Zinc Trivalent-Plated	Gasket Material Thermoplastic Elastomer	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Size	Materials	a Dimensions	b Dimensions	c Dimensions	d Dimensions
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36 in	0.34 in	0.075 in	0.87 in
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1-1/2 in	0.41 in	0.075 in	1 in
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91 in	0.58 in	0.075 in	1.45 in
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16 in	0.72 in	0.105 in	1.79 in
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2-3/4 in	0.91 in	0.119 in	2.22 in

Product Questions & Answers (1)

Question by: Shawn W on Feb 4, 2026, 12:21 PM

what's the temp range on the cushion for these clamps? got some lines runnin near a heat source and need to make sure they'll hold up

Answer by: Customer Support on Feb 6, 2026, 6:49 AM

The cushion is rated from -65°F up to 275°F, so it can handle reasonably warm environments without breaking down. As long as your heat source stays within that window, you should be in good shape for keeping those lines secured.
