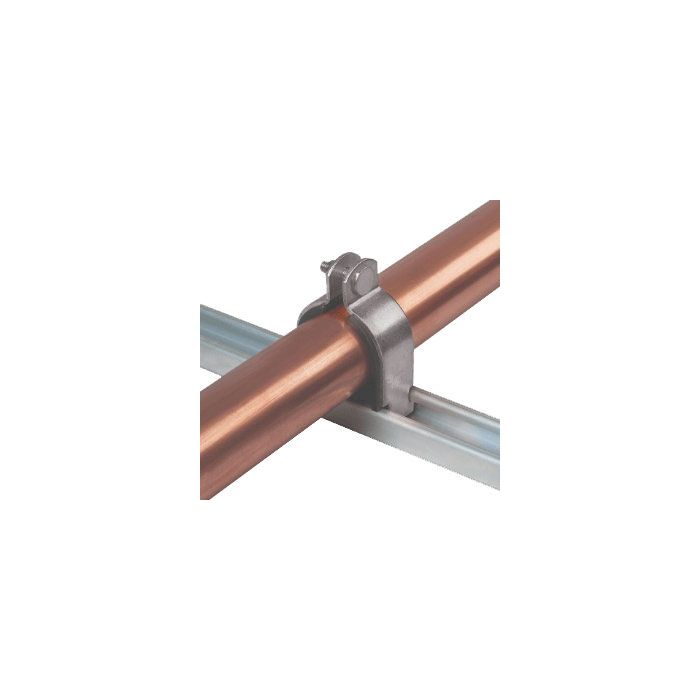

100-200 Series Pipe & Tubing Support Clamp, 1-1/8 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

Designed for secure and efficient support of 1-1/8 inch tubing, the 100-200 Series Pipe & Tubing Support Clamp excels in industrial applications. Constructed with a zinc-plated steel clamp, a steel Nylock nut, and a steel weld stud, this assembly ensures durability and long-lasting performance in demanding environments. Its robust materials and design facilitate straightforward installation, allowing fluid conductors to be added or removed without disturbing adjacent components.

The Hydra-Zorb support clamps cater to diverse needs with options in single and back-to-back configurations. They are available in materials like galvanized steel, 304/316 stainless steel, and aluminum, ensuring compatibility with various project requirements. The cushion is rated for temperatures from -65°F to 275°F, providing reliability across a wide range of operating conditions.

SKU: 100112

Supplier Part Number (MPN): 100112

Alternate Part Numbers: C1HC83, FMC237-6060-112, MI-03610332, MINO-01771X53699

Specifications

Brand Hydra-Zorb	a Dimensions 2.16 in	b Dimensions 0.72 in	Body Material Carbon Steel	c Dimensions 0.105 in	d Dimensions 1.79 in	Finish Trivalent Zinc-Plated	Locking Style Bolt	Suitable For Use With Uninsulated Tubes/Pipes	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Size	Materials	a Dimensions	b Dimensions	c Dimensions	d Dimensions
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36 in	0.34 in	0.075 in	0.87 in
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1-1/2 in	0.41 in	0.075 in	1 in
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91 in	0.58 in	0.075 in	1.45 in
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03 in	0.66 in	0.105 in	1.66 in
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2-3/4 in	0.91 in	0.119 in	2.22 in
