100-200 Series Pipe & Tubing Support Clamp, 1-1/4 inch Tubing, Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud

Description & Features

This Hydra-Zorb 100-200 Series Pipe & Tubing Support Clamp is designed to support 1-1/4 inch tubing. It features a 316 stainless steel clamp and a stainless steel nylock nut for secure fastening. The stud/bolt is also made of stainless steel weld stud, ensuring durability and corrosion resistance.

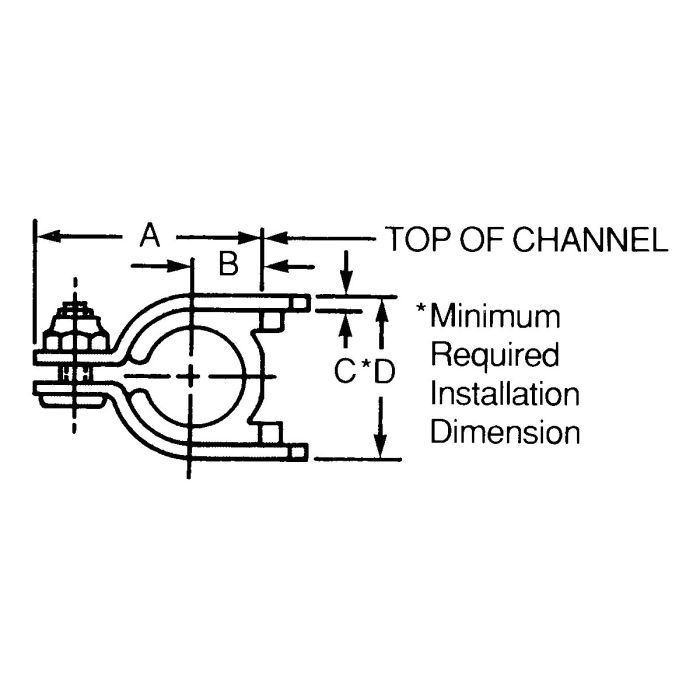

The dimensions of this 100-200 Series Pipe & Tubing Support Clamp are as follows: A: 2.3, B: 0.78, C: 0.105, and D: 1.92. Hydra-Zorb support clamps allow for easy removal or addition of fluid conductors without disturbing adjacent ones, and provide fast and simple installation.

SKU: 100125-4-656

Supplier Part Number (MPN): 100125-4-656

Alternate Part Numbers: C1EX35, MI-08763813, MINO-01771X98556

Specifications

A 2.30	B 0.78	C 0.11	D 1.92	Brand ZSI	Brand ZSI	Pack Size 1.00	UOM EA	Materials Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	Size 1-1/4 inch Tubing	Supplier Part Number 100125-4-656	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1EX35, Alternate Part Number MI-08763813, Alternate Part Number MINO-01771X98556	Product Weight 0.25 lbs

Similar Products

Model Number	Size	Materials	A	B	C	D
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11	0.22	0.075	0.62
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11	0.22	0.075	0.62
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24	0.28	0.075	0.75
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36	0.34	0.075	0.87
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.5	0.41	0.075	1
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78	0.53	0.075	1.33
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78	0.53	0.075	1.33
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91	0.58	0.075	1.45
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03	0.66	0.105	1.66
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16	0.72	0.105	1.79
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3	0.78	0.105	1.92
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3	0.78	0.105	1.92
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.75	0.91	0.119	2.22
