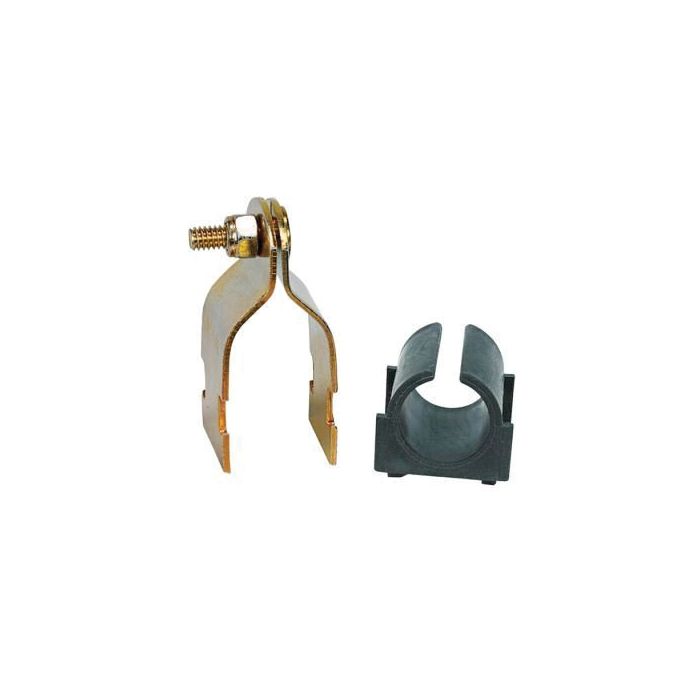

100-200 Series Pipe & Tubing Support Clamp, 1-1/4 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The HYDRA-ZORB CO 100-200 Series Support Clamp provides robust support for 1-1/4 inch tubing in industrial settings. This support clamp features a zinc plated steel clamp, a steel Nylock nut, and a steel weld stud, ensuring durability and resistance to corrosion. The cushion is rated to perform in a temperature range from -65deg;F to 275deg;F.

This clamp is well-suited for environments requiring the removal or addition of fluid conductors without disrupting adjacent ones, making installation quick and simple. The availability of clamps in various materials, such as 304 stainless, 316 stainless, and aluminum, offers versatility for matching different operational needs.

Base channel options include single and back-to-back configurations manufactured from 12 ga. steel, 14 ga. steel, 14 ga. 304 stainless, 14 ga. 316 stainless, and 6061T6 aluminum, with channel lengths ranging from 36 to 240 inches. This adaptability ensures a perfect fit for your specific project requirements.

MPN: C1AG19

Supplier Part Number: 100125

Specifications

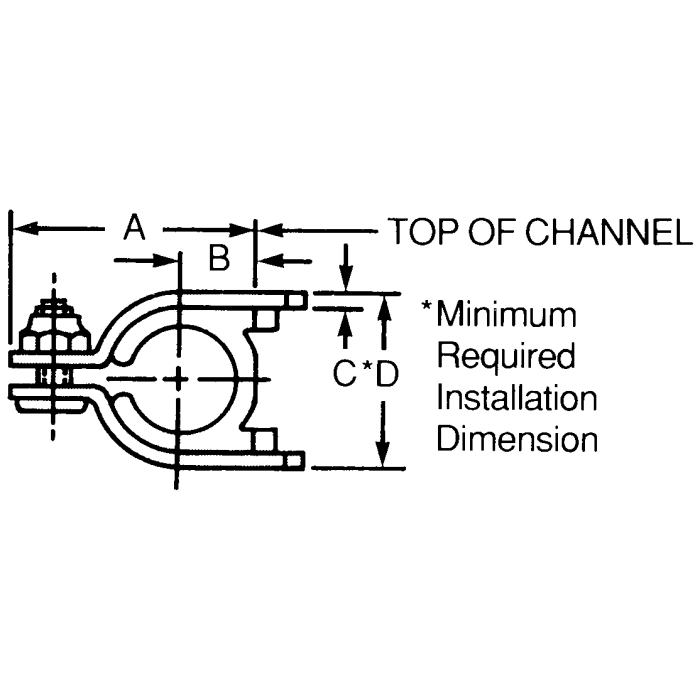

A 2.30	B 0.78	C 0.11	D 1.92	Brand ZSI	Brand ZSI	Pack Size 1.00	UOM EA	Materials Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	Size 1-1/4 inch Tubing	Supplier Part Number 100125	Thread Sealant No	Alternate Part Numbers Alternate Part Number 237-6060-125, Alternate Part Number C1AG19, Alternate Part Number MI-01168623, Alternate Part Number MINO-01771X53006	Product Weight 0.50 lbs

Similar Products

Model Number	Size	Materials	A	B	C	D
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11	0.22	0.075	0.62
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11	0.22	0.075	0.62
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24	0.28	0.075	0.75
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36	0.34	0.075	0.87
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.5	0.41	0.075	1
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78	0.53	0.075	1.33
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78	0.53	0.075	1.33
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91	0.58	0.075	1.45
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03	0.66	0.105	1.66
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16	0.72	0.105	1.79
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3	0.78	0.105	1.92
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3	0.78	0.105	1.92
100150 100-200 Series Support Clamp	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.75	0.91	0.119	2.22

Product Questions & Answers (2)

Question by: Hank G on Mar 29, 2025, 5:47 PM

what's the temp range on the cushion for this clamp? got some lines running near heat sources and need to know if it'll hold up

Answer by: Customer Support on Mar 31, 2025, 8:05 AM

The cushion on this clamp is rated from -65°F up to 275°F. For most industrial heat exposure situations that aren't involving direct flame or extreme process heat, that range covers a pretty wide variety of conditions without issue.

Question by: Cindy P on Nov 12, 2025, 7:43 PM

What size tubing is this clamp made for? Just want to make sure it'll fit what I'm workin' on.

Answer by: Customer Support on Nov 13, 2025, 8:55 PM

This support clamp is designed specifically for 1-1/4 inch tubing, so it should be a good fit for your project if that's the size you're using.
