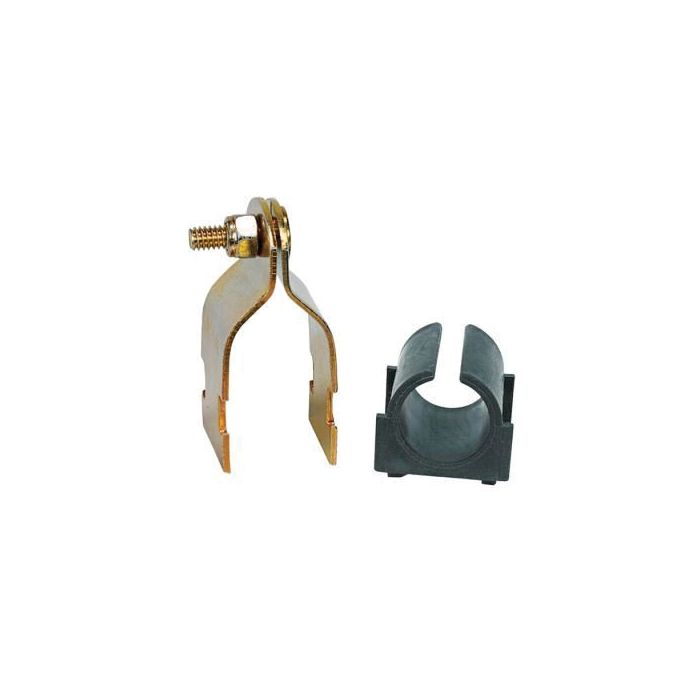

100-200 Series Pipe & Tubing Support Clamp, 1-1/2 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Description & Features

The Hydrazorb 100-200 Series Pipe & Tubing Support Clamp for 1-1/2 inch Tubing is designed for industrial applications where reliable and secure support is critical. This model features a clamp made of zinc-plated steel, ensuring longevity and resistance to corrosion in demanding environments.

The nut is made of steel Nylock, and the stud/bolt consists of a robust steel weld stud, providing firm and durable fastening. The support clamp allows fluid conductors to be removed or added easily without disturbing adjacent conductors, facilitating maintenance and modifications with minimal hassles.

This product ensures fast and simple installation, reducing downtime and improving efficiency in setups. Its cushion has a temperature range from -65deg;F to 275deg;F, suitable for various industrial conditions.

HYDRA-ZORB CO offers the support clamp in a variety of materials including galvanized steel, 304/304 stainless, 316 stainless, and aluminum, accommodating different industrial requirements and preferences.

Supplier Part Number: 100150

Specifications

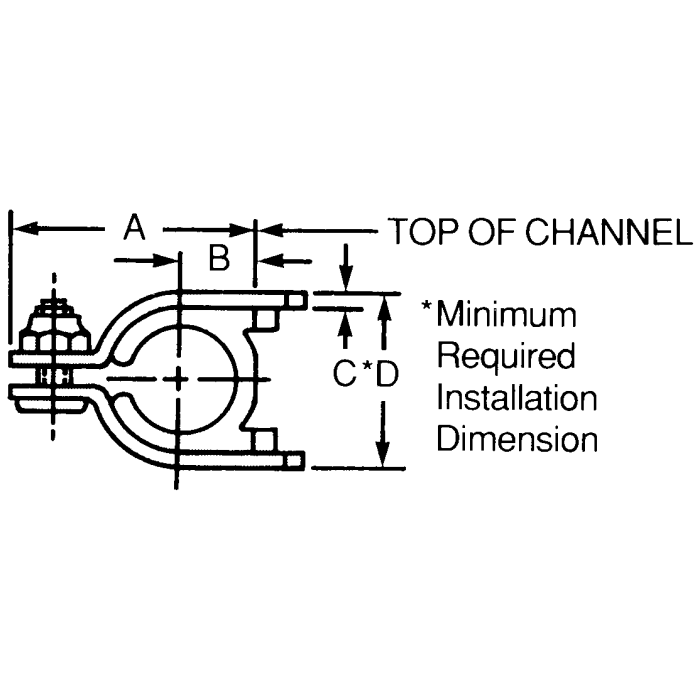

Brand Hydra-Zorb	a Dimensions 2-3/4 in	b Dimensions 0.91 in	Body Material 304 Stainless Steel	c Dimensions 0.119 in	d Dimensions 2.22 in	Finish Zinc Trivalent-Plated	Gasket Material Thermoplastic Elastomer	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Size	Materials	a Dimensions	b Dimensions	c Dimensions	d Dimensions
100025 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100025-4-656 100-200 Series Support Clamp	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11 in	0.22 in	0.075 in	0.62 in
100031 100-200 Series Support Clamp	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100037-4-656 100-200 Series Support Clamp	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24 in	0.28 in	0.075 in	3/4 in
100050 100-200 Series Support Clamp	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36 in	0.34 in	0.075 in	0.87 in
100062 100-200 Series Support Clamp	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1-1/2 in	0.41 in	0.075 in	1 in
100075 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100075-4-656 100-200 Series Support Clamp	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78 in	0.53 in	0.075 in	1.33 in
100087 100-200 Series Support Clamp	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91 in	0.58 in	0.075 in	1.45 in
100100 100-200 Series Support Clamp	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03 in	0.66 in	0.105 in	1.66 in
100112 100-200 Series Support Clamp	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16 in	0.72 in	0.105 in	1.79 in
100125 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3 in	0.78 in	0.105 in	1.92 in
100125-4-656 100-200 Series Support Clamp	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3 in	0.78 in	0.105 in	1.92 in

Product Questions & Answers (1)

Question by: Denise B on Feb 17, 2026, 2:26 PM

what all materials is this clamp available in if zinc plated steel ain't what I need for my setup?

Answer by: Customer Support on Feb 18, 2026, 3:11 PM

Quite a few options depending on your environment. Beyond zinc plated steel, these clamps come in galvanized steel, 304 stainless, 316 stainless, and aluminum. So if you're running somewhere with more moisture or chemical exposure, you've got room to step up to a stainless grade without having to source a completely different product line.
