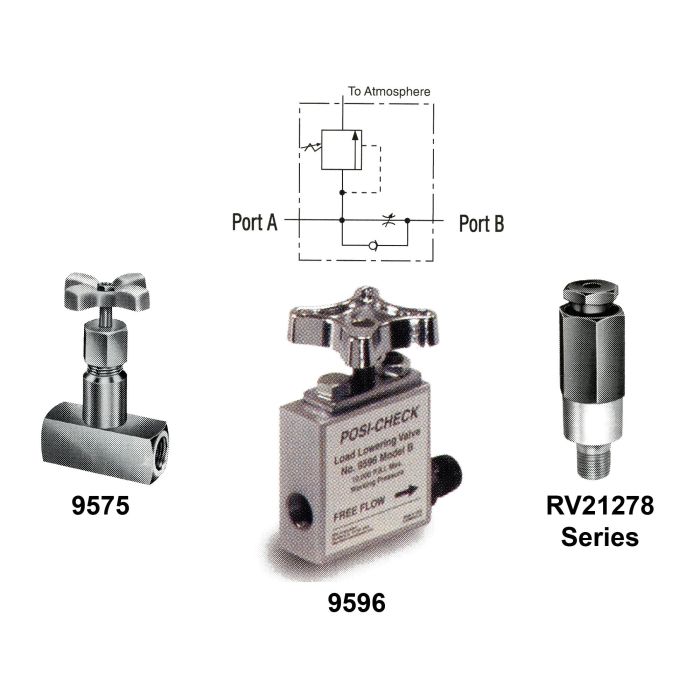

SPX Power Team LOAD LOWERing Valve

Description & Features

This SPX Power Team LOAD LOWERing Valve is designed for use with single- or double-acting cylinders, allowing adjustment of operating pressures below the pump's relief valve setting.

The regulator valve is easily adjustable to maintain pressures between 300 and 10,000 psi, holding a given pressure setting within 3% over repeated cycles. It has a flow range of 17 cubic inches per minute to 6 gallons per minute.

Also known under alternate part number C1JN16, this valve provides an economical means of protecting a hydraulic circuit against over pressurization.

SKU: 9596

Supplier Part Number (MPN): 9596

Alternate Part Numbers: C1JN16

Specifications

Brand HYDRAULIC TECH USA LLC(SPX)	Brand SPX Flow	Pack Size 1.00	UOM EA	Alternate Part Numbers Alternate Part Number C1JN16	Supplier Part Number 9596	Product Weight 2.18 lbs

Similar Products

Model Number	Product Description	Price	Action
9575 10000 PSI In-Line Valve	SPX NEEDLE VALVE
9596 10000 PSI In-Line Valve	SPX POWER TEAM LOAD LOWERING VALVE
9633 10000 PSI In-Line Valve	SPX H PRESS. VALVE
RV21278 10000 PSI In-Line Valve	SPX RELIEF VALVE 10 100/10 700 PSI
RV21278-15 10000 PSI In-Line Valve	SPX IN-LINE 10000 PSI HYDRAULIC RELIEF V
RV21278-25 10000 PSI In-Line Valve	SPX RELIEF VALVE. PRE-SET AT 2.300 TO 2.

Product Questions & Answers (3)

Question by: Pete C on Oct 25, 2025, 12:41 PM

Reckon this'd work with my double-acting cylinder setup?

Answer by: Customer Support on Oct 26, 2025, 9:39 PM

This SPX Power Team load lowering valve is indeed designed for use with both single- and double-acting cylinders.

Question by: Tammy H on Aug 30, 2025, 8:33 PM

pressure range on this thing goes up to 10,000 psi, does it actually hold steady once you dial it in or does it creep around on you?

Answer by: Customer Support on Sep 1, 2025, 2:51 PM

Holds real consistent once set. The valve maintains your pressure setting within 3% across repeated cycles, so if you dial it to a specific point, it stays there through the work. The adjustment range runs from 300 psi on the low end all the way to 10,000 psi, which gives you plenty of room to fine-tune below whatever your pump's relief valve is set at.

Question by: Phil S on Jun 8, 2025, 2:16 PM

got a single-acting cylinder setup, can this valve be used on that or is it only for double-acting?

Answer by: Customer Support on Jun 9, 2025, 9:35 PM

Built for either single-acting or double-acting cylinders, it fits both kinds of cylinder circuits.
