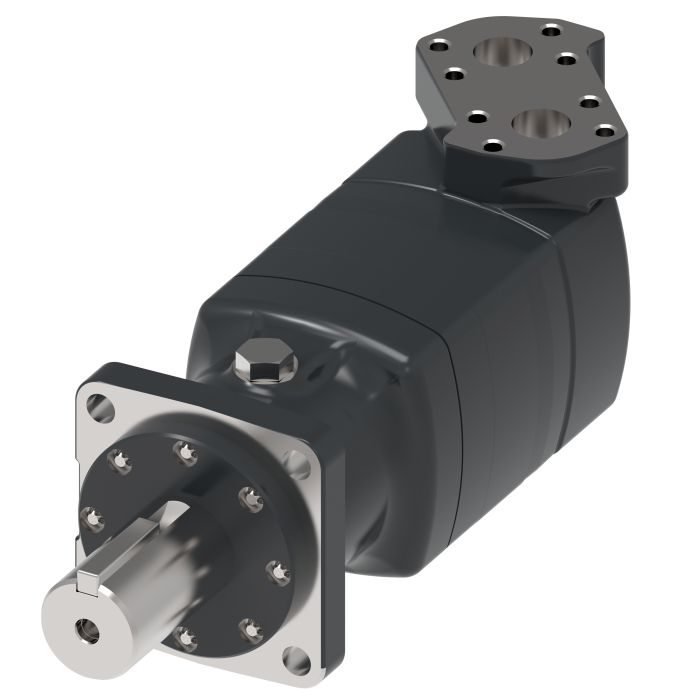

10000 Series Geroler Motor, 40.60 cu in/rev, 4 Bolt SAE C Mounting Flange, 2-1/4 in. Straight Keyed Shaft, 1-1/4 Code 61 Split Flange Ports,

Description & Features

The 10000 Series Geroler Motor 40.60 cu in/rev 4 Bolt SAE C Mounting Flange 2-1/4 in. Straight Keyed Shaft 1-1/4 Code 61 Split Flange Ports from Danfoss Power Solutions II LLC is engineered for industrial metal forming boring and port equipment applications. Featuring a robust 2-1/4 in. straight keyed shaft this motor ensures reliable torque transmission.

Equipped with highly-efficient Geroler technology it provides energy-saving performance and the lowest pressure drop in the industry. Suitable for environments where fluid viscosity ranges between 100-200 SUS the motor supports a maximum operating temperature of 180 F.

The 4 Bolt SAE C mounting flange and 1-1/4 Code 61 split flange ports guarantee secure installation. To assure optimal motor life a recommended break-in period of one hour at 30% of rated pressure is suggested. For continuous back pressure over 300 PSI use an external case drain line.

This motor adheres to ISO Cleanliness Code level 18/13 for recommended filtration. It is essential to utilize premium quality anti-wear hydraulic fluids for best performance.

MPN: EAR99

Supplier Part Number: 119-1042-003

Specifications

Brand Danfoss	Bearing Type Tapered Roller	Check Valve Function Without Check Valve Function	Design Code 3	Dimensions 17.74 in L x 5.91 in W x 5.79 in H	Drain Port Dimension 9/16-18 UNF-2B SAE O-ring	Frame Size 665	Housing Material Iron	Mounting Type 4-Bolt Square Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location Side, Staggered	Port Type UNC-2B, Code 61 Split Flange	Seal Material NBR	Segment Code B	Series 10000 Series	Shaft Type Straight Keyed	Valve Type Disc

Similar Products

Model Number	Port Type	Shaft Type	Shaft Size	Dimensions	Segment Code
119-1043 10000 Series Geroler Motor	UNC-2B, Code 61 Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1029 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1031 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1028 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1030 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1032	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	B
119-1033	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1034	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1035	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1036	UN-2B, SAE O-ring	Tapered Square Keyed		17.24 in L x 5.91 in W x 5.79 in H
119-1037	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1038	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1039	UN-2B, SAE O-ring	Tapered Square Keyed		18.46 in L x 5.91 in W x 5.79 in H	B
119-1040	UNC-2B, Split Flange	Straight Keyed		17.24 in L x 5.91 in W x 5.79 in H	A
119-1041	UNC-2B, Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	B

Product Questions & Answers (2)

Question by: Jerry P on Aug 7, 2025, 2:58 PM

running this on a sawmill setup and want to make sure it can handle the load without cooking itself. what's the max temp this thing's rated for before it starts having problems?

Answer by: Customer Support on Aug 9, 2025, 6:29 AM

Upper limit on operating temperature is 180 degrees F. As long as your system stays under that, you're in good shape. Worth noting that the recommended fluid viscosity range is 100 to 200 SUS at operating temperature, so keeping your fluid in that window helps manage heat too. Minimum acceptable viscosity is 70 SUS, but you'd want to stay above that for anything resembling continuous work.

Question by: Judy M on Jun 16, 2025, 10:16 AM

Hey, will this thing bolt right up to a standard SAE C mount? Just want to make sure before I order.

Answer by: Customer Support on Jun 18, 2025, 8:09 AM

it uses a 4-bolt SAE C mounting flange, so it should fit right up.
