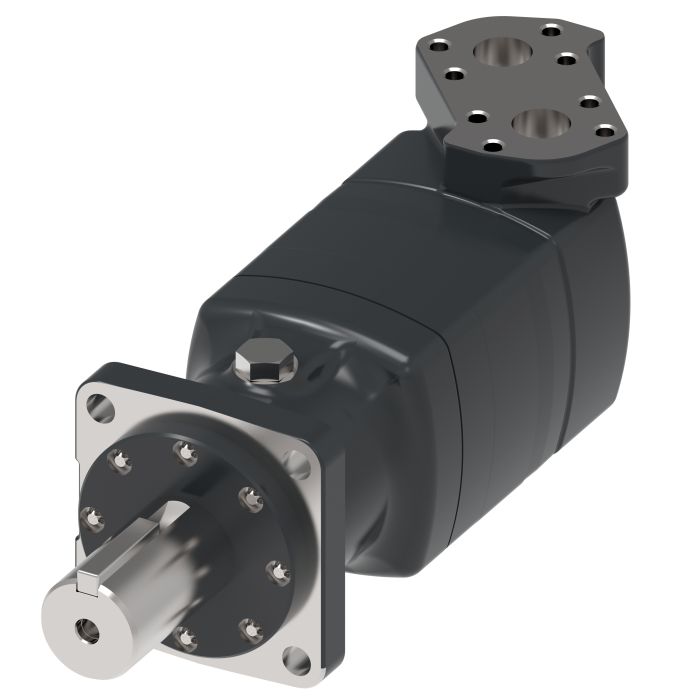

10000 Series Geroler Motor, 6.10 cu in/rev, 4 Bolt SAE C-mount Mounting Flange, 2-1/4 in. Straight Keyed-shaft Shaft, 1-1/4 Code 61 Split Flange-ports Ports,

Description & Features

The Eaton Char-Lynn 10000 Series Geroler Motor is engineered for demanding industrial applications such as boring, metal forming, and sawmill use. Featuring a 6.10 cubic inch per revolution displacement, this motor is designed for efficiency and energy savings with its highly-efficient Geroler technology. The 4 Bolt SAE C-mount mounting flange ensures secure attachment, while the 2-1/4 inch straight keyed shaft provides reliable torque transmission. To optimize performance, it incorporates 1-1/4 Code 61 split flange ports, known for minimizing pressure drop, the lowest in the industry.

This motor is capable of handling a maximum case pressure of 300 PSI without a case drain, making it suitable for continuous use. For optimal longevity, a break-in period at 30% of rated pressure is recommended. It is compatible with premium quality, anti-wear hydraulic fluids and benefits from a filtration level meeting ISO Cleanliness Code 18/13 standards.

SKU: 119-1043

Supplier Part Number (MPN): 119-1043-003

Alternate Part Numbers: C1LW69

Specifications

Brand Danfoss	Bearing Type Tapered Roller	Check Valve Function Without Check Valve Function	Design Code 3	Dimensions 17.74 in L x 5.91 in W x 5.79 in H	Drain Port Dimension 9/16-18 UNF-2B SAE O-ring	Frame Size 940	Housing Material Iron	Mounting Type 4-Bolt Square Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location Side, Staggered	Port Type UNC-2B, Code 61 Split Flange	Seal Material NBR	Segment Code A	Series 10000 Series	Shaft Type Straight Keyed	Valve Type Disc

Similar Products

Model Number	Port Type	Shaft Type	Shaft Size	Dimensions	Segment Code
119-1029 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1031 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1028 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1030 10000 Series Geroler Motor	UN-2B, SAE O-ring	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	A
119-1042 10000 Series Geroler Motor	UNC-2B, Code 61 Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1032	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	B
119-1033	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1034	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1035	UN-2B, SAE O-ring	Splined	2-1/8 in Dia	17.74 in L x 5.91 in W x 5.79 in H	A
119-1036	UN-2B, SAE O-ring	Tapered Square Keyed		17.24 in L x 5.91 in W x 5.79 in H
119-1037	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1038	UN-2B, SAE O-ring	Tapered Square Keyed		17.74 in L x 5.91 in W x 5.79 in H	B
119-1039	UN-2B, SAE O-ring	Tapered Square Keyed		18.46 in L x 5.91 in W x 5.79 in H	B
119-1040	UNC-2B, Split Flange	Straight Keyed		17.24 in L x 5.91 in W x 5.79 in H	A
119-1041	UNC-2B, Split Flange	Straight Keyed		17.74 in L x 5.91 in W x 5.79 in H	B

Product Questions & Answers (3)

Question by: Merle P on Jul 14, 2025, 8:33 PM

What kind of applications does this motor work with?

Answer by: Customer Support on Jul 16, 2025, 6:30 AM

This 10000 Series Geroler motor is suitable for applications like boring, industrial uses, metal forming, port equipment, and even saw mills.

Question by: Cody H on Dec 21, 2025, 7:29 PM

got a motor with 1-1/4 code 61 split flange ports now. are these ports the same deal, 4-bolt and all?

Answer by: Customer Support on Dec 23, 2025, 6:15 AM

Port-wise, it uses 1-1/4 Code 61 split flange ports with a 4-bolt split flange pattern. The port type is called out as a 31.75 mm (1.250 in) diameter 4-bolt split flange with staggered ports and .4375-14 UNC-2B tapped mounting holes.

Question by: Judy C on Jul 8, 2025, 12:38 PM

what's the max back pressure this motor can handle before you'd need to run an external case drain line?

Answer by: Customer Support on Jul 10, 2025, 8:21 AM

Without a case drain, the motor handles up to 300 PSI of back pressure. Once you're running continuous back pressure above that, you'll need to tie in an external case drain line. Keep that line positioned so the motor case stays full of fluid at all times or you risk running it dry internally.
