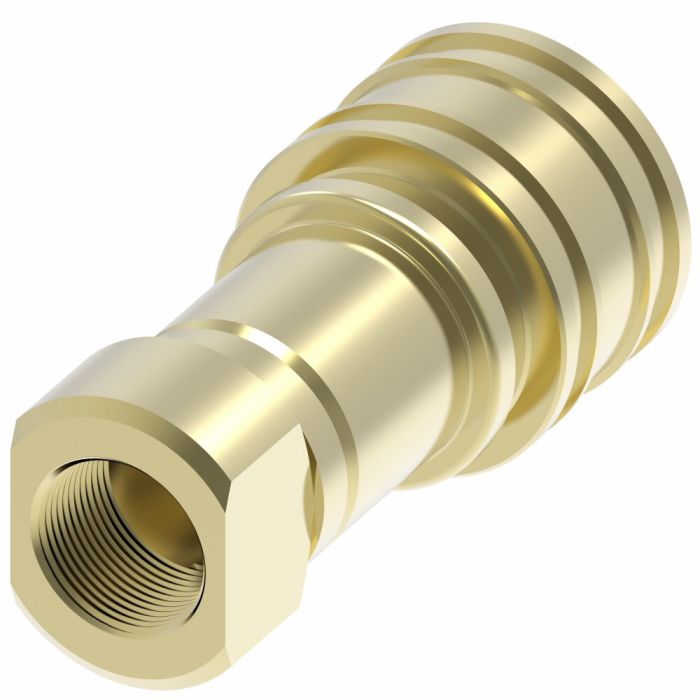

Designed for fuel gas systems, industrial fluid handling, and food and beverage applications, the Danfoss / Eaton/Hansen GasMate Coupling is a brass female half quick disconnect coupling with a 3/8 in. port size and NPTF end connection. The push-to-connect interface uses a ball lock mechanism with a sleeve lock for secure, tool-free engagement and disengagement.
Constructed from brass with a Buna-N seal, this coupling is rated for a minimum working temperature of -40°F and carries ANSI Z21.41B-2010 certification with CSA 6.96-2010 compliance. The one-way valve design exceeds ISO 16028 operating pressure requirements, making it well-suited for demanding gas service environments.
SKU: 100006E
Supplier Part Number (MPN): 100006E
|
Alternate Part Numbers
MINO-00015X02092
|
Application
Industrial, Fuel Gas Systems, Food & Beverage
|
Certifications
ANSI Z21.41B-2010
|
Compliances
CSA 6.96-2010
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Brass
|
Product Width
1.13
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
100006E
|
Valve Type
1 way
|
Product Weight
0.35 lbs
|
