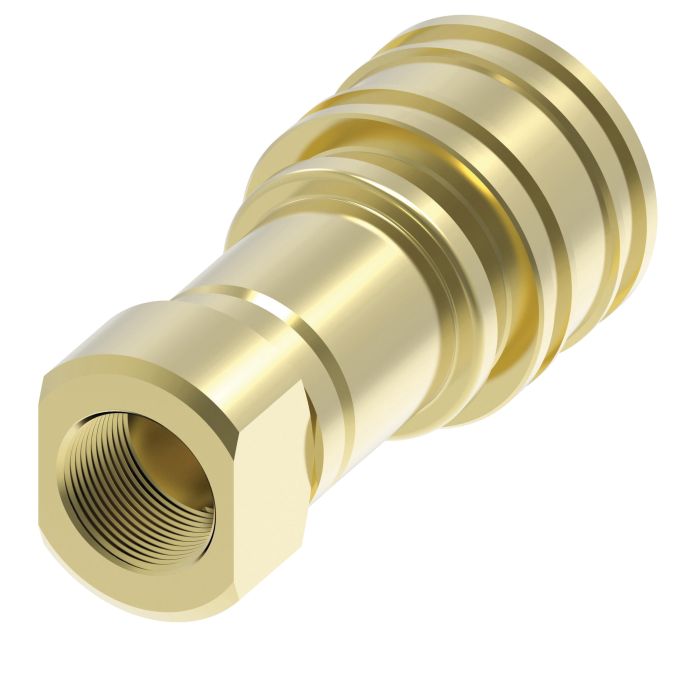

Designed for fuel gas systems, food and beverage applications, and general industrial use, the Danfoss / Eaton Fluid Con Cplng, Gasmate FemHalfBra is a brass female half quick disconnect coupling from the Hansen line. The push-to-connect female end pairs with a 1/2" NPTF port and uses a ball lock internal connection type, with a sleeve lock safety mechanism to prevent accidental disconnection.
Constructed from brass with a Buna-N seal, this one-way valve coupling is rated for a minimum working temperature of -40°F and exceeds ISO 16028 operating pressure requirements. No special tools are required for connection or disconnection. Certified to ANSI Z21.41B-2010 and compliant with CSA 6.96-2010, this coupling is well-suited for gas handling environments where verified performance standards are required.
SKU: 100008
Supplier Part Number (MPN): 100008
|
Alternate Part Numbers
MINO-00015X02093
|
Application
Industrial, Fuel Gas Systems, Food & Beverage
|
Certifications
ANSI Z21.41B-2010
|
Compliances
CSA 6.96-2010
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/2
|
Product Material
Brass
|
Product Width
1.38
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
100008
|
Valve Type
1 way
|
Product Weight
0.56 lbs
|
