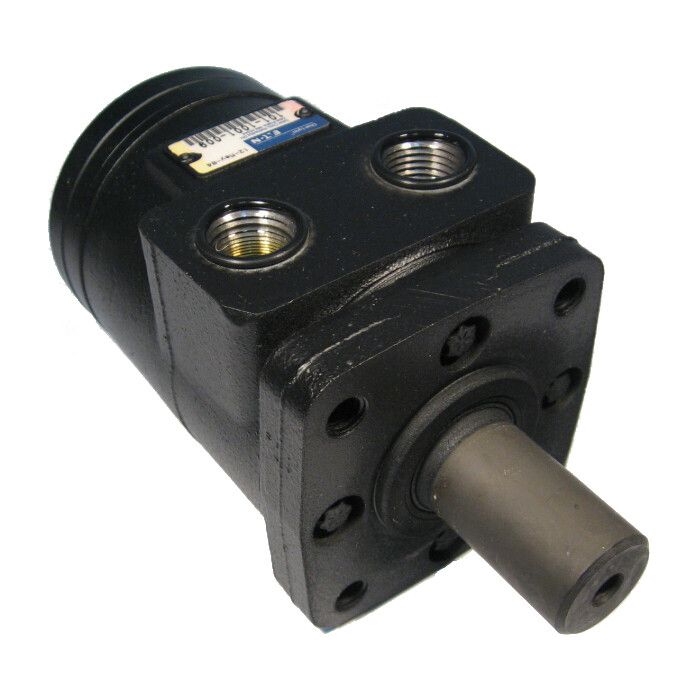

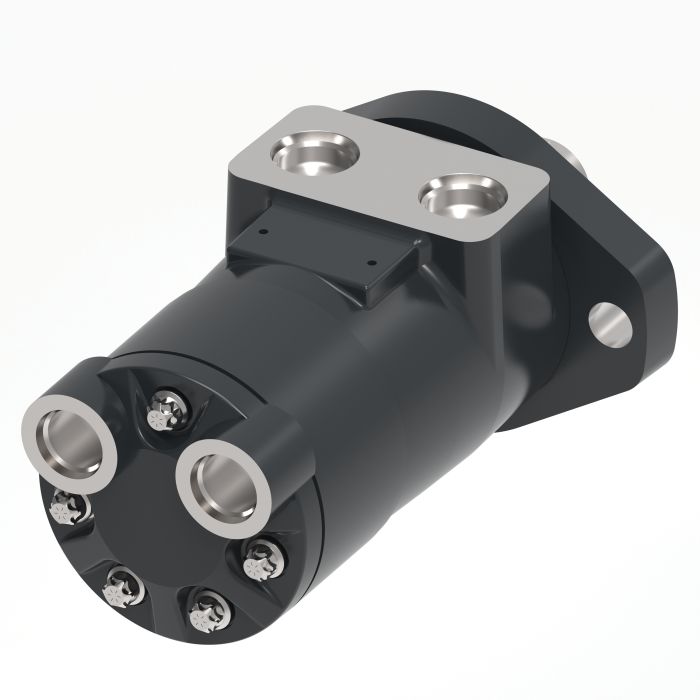

main product photo

DANFOSS / EATON CHAR-LYNN MOTOR 2.8 CI/REV

Ask A Question

Description & Features

Designed for low-speed, high-torque applications, the Danfoss / Eaton Char-Lynn Motor 2.8 Ci/Rev is a cast iron Geroler motor suited to demanding agricultural and industrial environments. Typical applications include agricultural augers, harvesters, seeders, industrial sweepers, and floor polishers.

Rated at 73 Nm of torque and supporting a flow rate of up to 45 litres per minute, this motor delivers consistent performance in compact installations. Extended bearing life and an increased shaft seal capacity make it well-suited to continuous-duty cycles where reliability under load is a priority.

SKU: 101-1041

Supplier Part Number (MPN): 101-1041-009

Alternate Part Numbers: C1JW16

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
6.45 in L x 5.27 in W x 3.87 in H
Frame Size
45
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNC-2B, Manifold
Seal Material
NBR
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (2)

Question by: Brent G on Jul 7, 2025, 6:11 PM
What kind of machines is this motor typically used on?
Answer by: Customer Support on Jul 9, 2025, 8:09 AM
This Eaton Char-Lynn motor finds use in agricultural equipment like augers, harvesters, and seeders, as well as industrial sweepers and floor polishers.
Question by: Hubert H on Jun 18, 2025, 4:14 PM
trying to replace an older Char-Lynn motor, is this one the 2.8 cubic inch per rev model?
Answer by: Customer Support on Jun 20, 2025, 2:55 PM
For fit and displacement matching, the key spec on this motor is 2.8 cubic inches per revolution, and it’s an Eaton Char-Lynn H Series spool geroler style motor.
