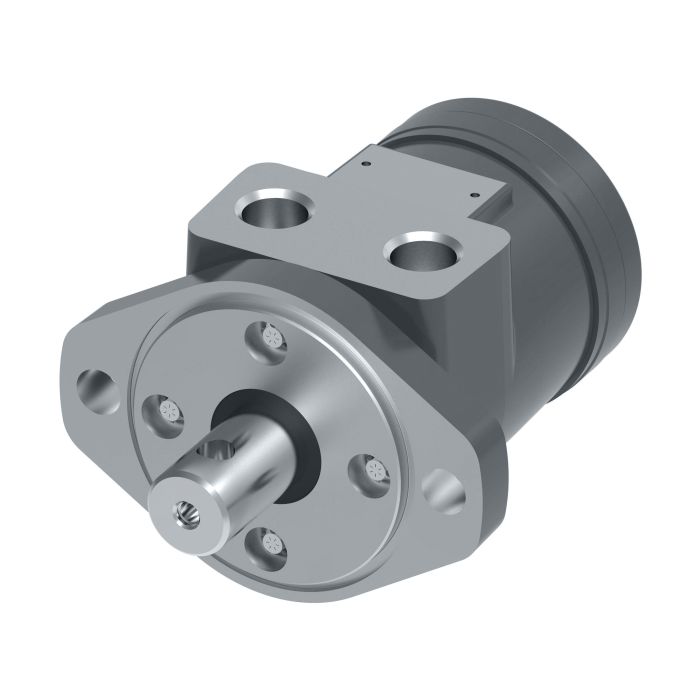

CHAR-LYNN H MOTOR 7360-8

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic applications, the Char-Lynn H Motor 7360-8 is a high-displacement hydraulic motor built on Char-Lynn's well-established H-series platform. H-series motors are known for their robust torque output and reliable performance across a wide range of fluid power systems, making this unit a practical choice for equipment requiring consistent rotational power under load.

With limited attribute data available beyond part identification, buyers are encouraged to reference the full specification table on this page for displacement, speed range, shaft configuration, and port details specific to this model.

SKU: 101-1320-009

Supplier Part Number (MPN): 101-1320-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
6.6 in L x 5.27 in W x 3.87 in H
Frame Size
75
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
NPTF
Seal Material
NBR
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Straight Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Lance A on Feb 17, 2026, 7:38 AM
What line of motors does this 7360-8 fall under, and is it built for heavy-duty use or more of a light-duty setup?
Answer by: Customer Support on Feb 18, 2026, 8:19 AM
Part of Char-Lynn's H-series platform, which has a solid reputation in fluid power circles for handling tough loads without giving up reliability. These motors are built around robust torque output, so they lean toward the heavier end of the duty spectrum. Whether you're running mobile equipment or a fixed industrial system, the H-series is engineered to deliver consistent rotational power under real working conditions, not just light intermittent use.
