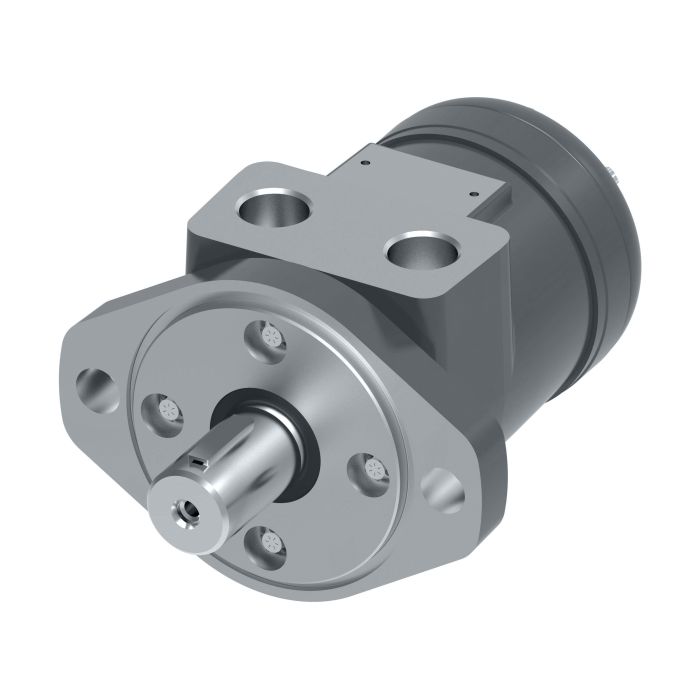

main product photo

CHARLYN H. SERIES 5.9

Ask A Question

Description & Features

Designed for demanding agricultural and industrial duty, the Char-Lynn H Series 5.9 is a cast iron Geroler hydraulic motor built to deliver reliable torque in applications such as agricultural augers, harvesters, seeders, industrial sweepers, and floor polishers. With a torque rating of 155 Nm and a maximum flow rate of 57 litres per minute, it suits drive tasks where consistent low-speed performance is required.

The H Series 5.9 features an extended bearing life design alongside an increased shaft seal capacity, making it well suited to environments where durability and reduced maintenance intervals matter. Its compact form factor allows fitment in space-constrained installations without compromising output capability.

SKU: 101-1662

Supplier Part Number (MPN): 101-1662-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
6.72 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
1/4 in
Frame Size
95
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Segment Code
C
Series
H Series
Shaft Size
25 mm Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (2)

Question by: Peggy J on Aug 18, 2025, 2:25 PM
Will this work on my old seed drill? Just need something reliable.
Answer by: Customer Support on Aug 19, 2025, 5:15 PM
Application-wise, this Char-Lynn H Series motor is used in agricultural augers, harvesters, and seeders. You'll want to double-check the flow rate and torque rating requirements of your specific drill to ensure compatibility.
Question by: Neal J on Sep 5, 2025, 8:28 AM
got a harvester sitting idle cause the motor went out, this a direct replacement for the Char-Lynn H Series 5.9 or do i need to cross-reference something first?
Answer by: Customer Support on Sep 6, 2025, 5:13 PM
As long as you're matching it to a Char-Lynn H Series 5.9 application, the SKU 101-1662 is the correct unit. The supplier part number is 101-1662-009, so if your old motor has that stamped on it or in your parts records, you're good to go. Cast iron housing, same geroler design, same series.
