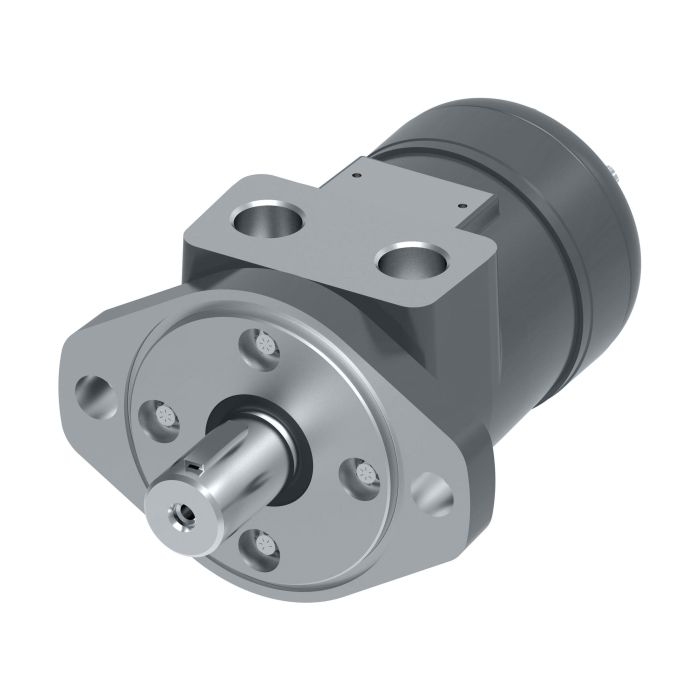

main product photo

CHARLYN H SER 9.7CIR 25MM DIA Shaft

Ask A Question

Description & Features

Ideal for agricultural and industrial applications, the Eaton Char-Lynn H Series Spool Geroler offers reliability and efficiency with its robust construction and innovative design. This hydraulic component features a compact yet powerful structure crafted from durable cast iron, ensuring extended bearing life and increased shaft seal integrity. It boasts a torque rating of 233 newton-metres, making it suitable for demanding tasks in agricultural augers, harvesters, seeders, industrial sweepers, and floor polishers.

The CHARLYN H SER 9.7CIR 25MM DIA Shaft allows for a maximum flow rate of 57 litres per minute, delivering consistent performance in low-speed gerotor/geroler use. The shaft diameter of 25mm provides a balanced combination of strength and versatility, accommodating various equipment designs.

SKU: 101-1663

Supplier Part Number (MPN): 101-1663-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
7.06 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
1/4 in
Frame Size
160
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Segment Code
C
Series
H Series
Shaft Size
25 mm Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Danny R on Sep 8, 2025, 6:23 PM
Got a harvester that needs a new wheel motor and the old one put out around 233 Nm. Does this Char-Lynn unit match up to that?
Answer by: Customer Support on Sep 9, 2025, 9:30 PM
That torque rating lines up exactly. The H Series motor listed here is rated at 233 newton metres, so if your old unit was running at that output, this is a direct match on that spec. The 25mm shaft diameter and the 9.7 cubic inch displacement are the other numbers worth confirming against your current setup before ordering.
