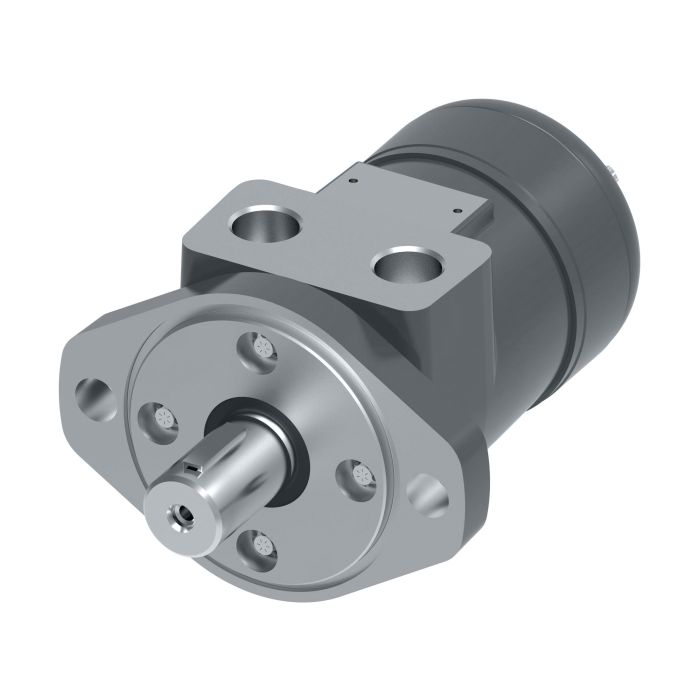

CHAR LYNN MH0113AA24AF2000000000A0J

Ask A Question

Description & Features

The Eaton Char-Lynn MH0113AA24AF2000000000A0J H Series Spool Geroler is a compact yet powerful hydraulic motor crafted from durable cast iron. The Char-Lynn motor is designed to provide extended bearing life and features an enhanced shaft seal for demanding applications.

This low-speed gerotor/geroler motor is suitable for a variety of uses, including agricultural augers, harvesters, and seeders, as well as industrial sweepers and floor polishers. With a flow rate of 57 liters per minute and a torque rating of 265 newton meters, the CHAR LYNN MH0113AA24AF2000000000A0J offers reliable performance in a compact 5.27-inch width.

SKU: 101-1664

Supplier Part Number (MPN): 101-1664-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
7.2 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
1/4 in
Frame Size
185
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Series
H Series
Shaft Size
25 mm Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (2)

Question by: Kent C on Sep 21, 2025, 6:46 AM
What kinda machines would this motor be good for? Auger, you said?
Answer by: Customer Support on Sep 22, 2025, 10:27 AM
It's well-suited for agricultural augers, as well as harvesters, seeders, and even industrial sweepers or floor polishers.
Question by: Rhonda H on Apr 17, 2025, 8:07 PM
running an auger setup off this motor, what kinda torque output am I actually working with here?
Answer by: Customer Support on Apr 19, 2025, 6:44 AM
At 265 newton metres, there's solid rotational force on tap for demanding auger work. That puts it well within range for agricultural auger applications, which this motor is specifically rated for. The cast iron construction helps hold up under the kind of continuous loading you get in grain handling or seeding use, so the torque figure isn't just a peak number sitting there for show.
