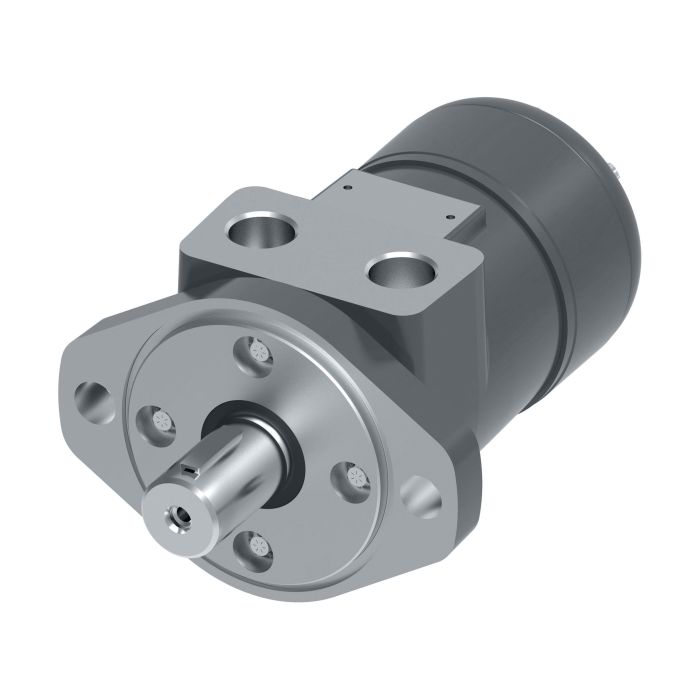

CHAR LYNN MH0141AA24AF2000000000A0J

Ask A Question

Description & Features

The Eaton Char-Lynn MH0141AA24AF2000000000A0J is a robust hydraulic motor designed for agricultural and industrial applications, including augers, harvesters, seeders, and industrial sweepers. Renowned for its compact yet powerful performance, it ensures extended bearing life and increased shaft seal integrity. Constructed from durable cast iron, this motor supports a flow rate of 57 liters per minute and delivers a torque rating of 302 newton meters, making it ideal for demanding tasks.

This low-speed Gerotor/Geroler motor from the Char-Lynn sub-brand is a testament to quality and reliability. Suitable for environments where reliability and efficiency are paramount, it offers a seamless integration into existing systems. The product's versatility and performance make it a preferred choice for professionals in the hydraulic sector.

SKU: 101-1665

Supplier Part Number (MPN): 101-1665-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
7.45 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
1/4 in
Frame Size
230
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Series
H Series
Shaft Size
25 mm Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (2)

Question by: Ricky M on Mar 8, 2026, 3:57 PM
what's the torque output on this motor, and would it hold up running harvest equipment regular?
Answer by: Customer Support on Mar 10, 2026, 3:32 PM
Rated at 302 newton metres of torque, it has enough grunt for demanding agricultural applications like harvesters and augers. The cast iron construction holds up well under the kind of continuous load you'd see during a harvest season, and the extended bearing life feature means it's built to take that repeated use without wearing down fast.
Question by: Pete W on Sep 28, 2025, 2:46 PM
Will this motor work on my grain auger without any modifications?
Answer by: Customer Support on Sep 29, 2025, 3:51 PM
This Char-Lynn H Series motor is often used for agricultural augers, so it should be suitable for your grain auger.
