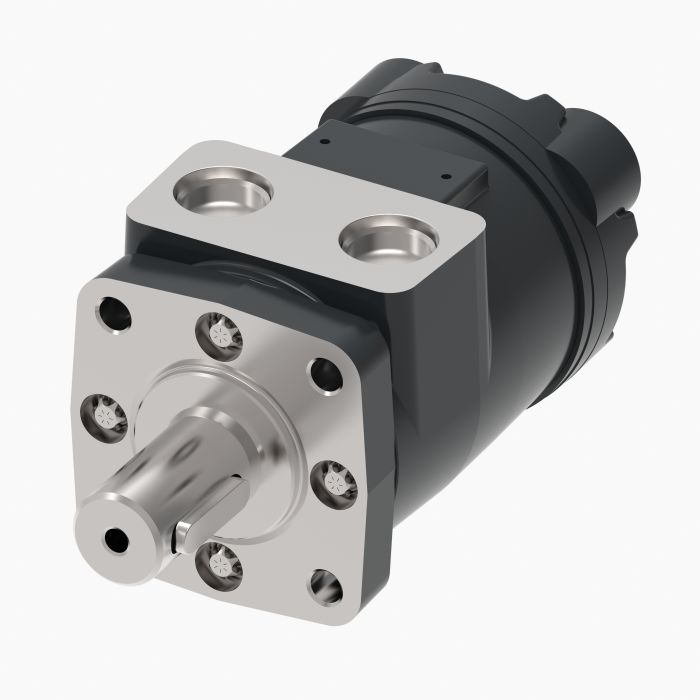

main product photo

CHAR LYNN MOTOR

Ask A Question

Description & Features

This Char-Lynn motor is suitable for a wide range of applications.

SKU: 101-1681-009

Supplier Part Number (MPN): 101-1681-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
6.45 in L x 3.31 in W x 3.87 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
45
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
End, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (2)

Question by: Floyd S on Jun 9, 2025, 7:22 AM
part number 101-1681-009, is that the Char-Lynn motor or just a supplier reference number?
Answer by: Customer Support on Jun 10, 2025, 4:07 PM
Both, actually. The SKU and the supplier part number are one and the same on this one: 101-1681-009. That's the Char-Lynn designation, so when you're cross-referencing with your existing equipment or placing a replacement order, that number covers it.
Question by: Lynn W on Jul 25, 2025, 4:16 PM
Will this Char-Lynn motor work as a replacement for the same part number?
Answer by: Customer Support on Jul 26, 2025, 5:20 PM
This Char-Lynn motor is indeed a suitable replacement if your current motor also has the part number 101-1681-009.
