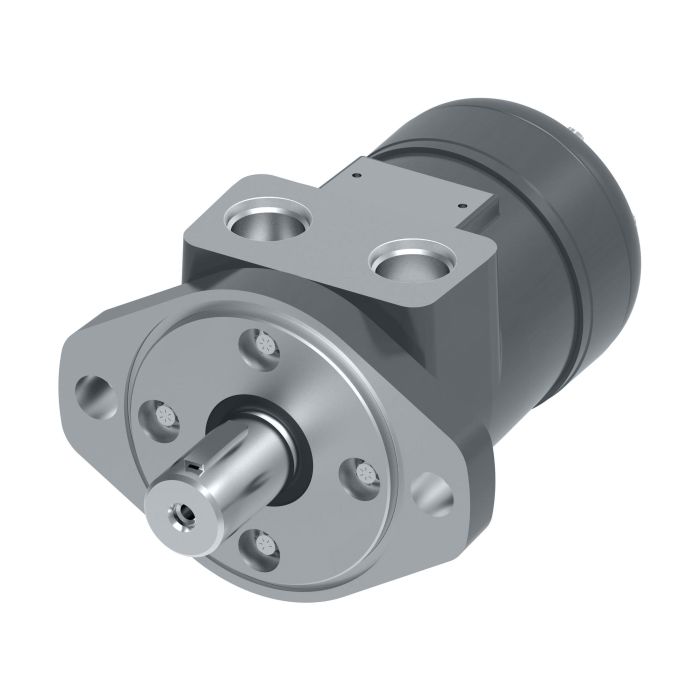

main product photo

MH0097AA01AA1000000000A0J

Ask A Question

Description & Features

This Char-Lynn MH0097AA01AA1000000000A0J is ready to order.

Ensure the MH0097AA01AA1000000000A0J matches your requirements before ordering.

SKU: 101-1699-009

Supplier Part Number (MPN): 101-1699-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
7.06 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
160
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Debbie M on Jan 11, 2026, 3:10 PM
Got a Char-Lynn unit that needs replacing, part number on mine is 101-1699-009. That the same as this one?
Answer by: Customer Support on Jan 13, 2026, 11:30 AM
Same part, yes. The MH0097AA01AA1000000000A0J carries the supplier part number 101-1699-009 and is sold under the Char-Lynn brand, so if that number matches what's on your existing unit, you're looking at the right replacement.
