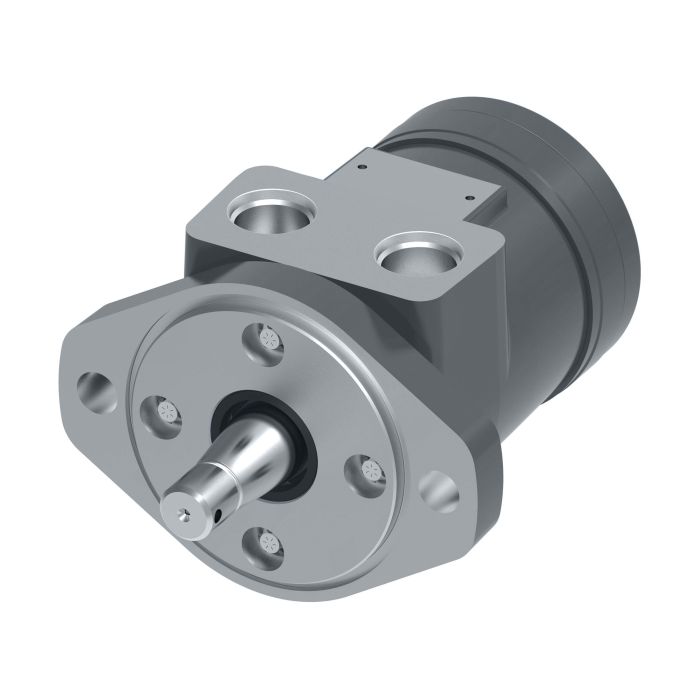

CHAR LYNN MH0059TA18AA0A00000001A0J

Ask A Question

Description & Features

Designed for demanding agricultural and industrial applications, the Eaton Char-Lynn MH0059TA18AA0A00000001A0J is a low-speed Geroler hydraulic motor built around a cast iron construction for durability in continuous-duty environments. With a torque rating of 155 Nm and a maximum flow rate of 57 litres per minute, it delivers reliable rotational force suited to agricultural augers, harvesters, seeders, industrial sweepers, and floor polishers.

The H Series Spool Geroler design offers a compact footprint without compromising output capability. Extended bearing life and an increased shaft seal rating contribute to long service intervals, particularly in applications where exposure to contamination or sustained load cycling is a factor. The cast iron housing supports structural integrity under the mechanical stresses typical of mobile agricultural equipment.

SKU: 101-2572

Supplier Part Number (MPN): 101-2572-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
6.72 in L x 5.27 in W x 3.87 in H
Frame Size
95
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Free Running
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Rotation Direction
Reversible
Seal Material
NBR
Segment Code
C
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Tapered Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (2)

Question by: Connie M on Nov 10, 2025, 8:56 AM
Will this motor work on my harvester auger, or is it too small?
Answer by: Customer Support on Nov 11, 2025, 7:51 PM
It's definitely applicable to agricultural augers, harvesters, and seeders. It's also used in industrial sweepers, so it should have the versatility you need.
Question by: Neal P on Oct 23, 2025, 10:06 AM
runs about 57 liters a minute, but what kind of torque are we actually getting out of this thing for heavier auger work?
Answer by: Customer Support on Oct 24, 2025, 4:07 PM
At 155 newton metres of torque, this motor holds up well for demanding auger applications. That output is substantial enough for agricultural augers and harvesters where you need real pulling power at low speed, not just flow. The H Series Geroler design is built specifically for that kind of low-speed, high-torque work, so the numbers here aren't just on paper. Cast iron construction helps it hold up under the stress that comes with that load.
