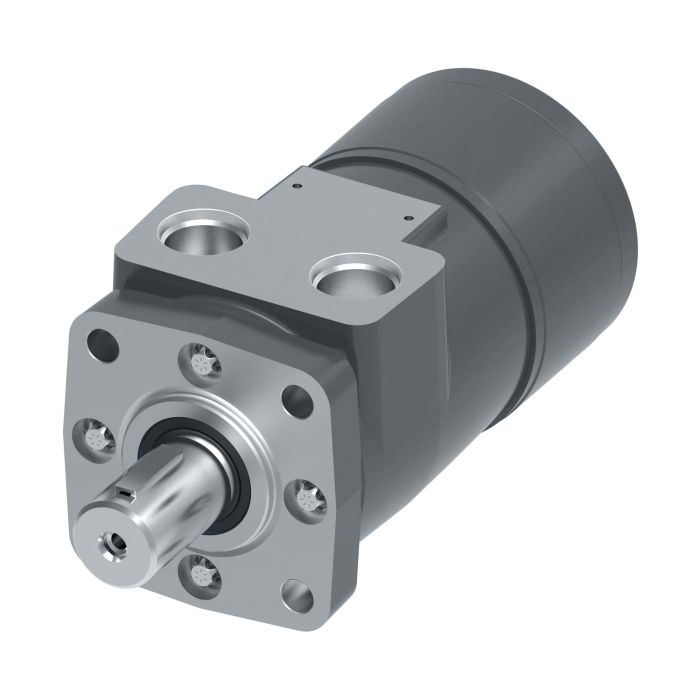

CHAR-LYNN MOTOR MH0179BA01AA0000700000A0

Ask A Question

Description & Features

This Char-Lynn MH series spool geroler is a compact yet powerful hydraulic motor, designed for extended bearing life and increased shaft seal performance. The CHAR-LYNN MOTOR MH0179BA01AA0000700000A0 is constructed from durable cast iron.

This hydraulic motor is designed for applications such as agricultural augers, harvesters, and seeders, as well as industrial sweepers and floor polishers. It offers a flow rate of 57 liters per minute and a torque rating of 351 newton meters.

SKU: 101-2654-009

Supplier Part Number (MPN): 101-2654-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
7.79 in L x 3.31 in W x 3.87 in H
Frame Size
295
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
HNBR
Segment Code
A
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Troy J on Jun 28, 2025, 8:59 AM
Got a harvester that's been eating through motors faster than I'd like. Would this Char-Lynn MH series hold up better long-term, or is it pretty much the same as what I've already been running?
Answer by: Customer Support on Jun 30, 2025, 8:14 AM
Extended bearing life is one of the core design priorities on this motor, along with improved shaft seal performance. Both of those are common failure points on motors used in harvesting equipment, so if that's where you've been losing them, this one is built with exactly that problem in mind. The cast iron construction also adds durability over lighter-duty alternatives. At 351 newton meters of torque and a 57 liter per minute flow rate, it's well suited for the demands of harvesting applications.
