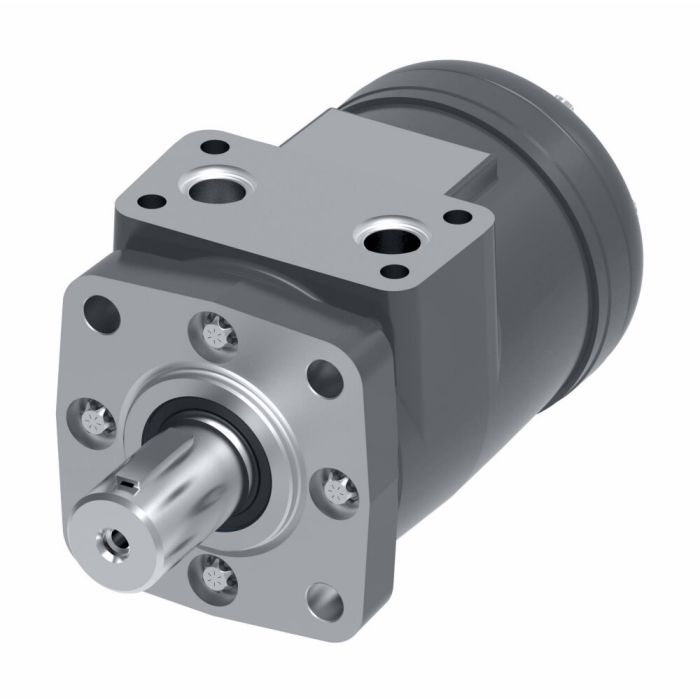

main product photo

CHAR-LYNN MOTOR

Ask A Question

Description & Features

Ideal for agricultural and industrial applications, the Eaton Char-Lynn H Series Spool Geroler Motor offers a robust solution for demanding environments. With a compact design and extended bearing life, this motor is engineered for durability and reliability. Its cast iron construction ensures resilience, while the increased shaft seal minimizes maintenance needs. Capable of a 57-liter per minute flow rate, this motor provides consistent and efficient performance. Rated at 118 Newton meters of torque, it is well-suited for use in equipment such as agricultural augers, harvesters, seeders, and industrial sweepers.

SKU: 101-3944

Supplier Part Number (MPN): 101-3944-009

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
9
Dimensions
6.6 in L x 3.38 in W x 3.31 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
75
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Gerotor
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNC-2B, Manifold
Seal Material
NBR
Series
H Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Similar Products

Model Number Shaft Type Mounting Type Dimensions Price Action
DANFOSS / EATON CHAR-LYNN MOTOR 4.5 CI/REV

101-1090

Splined

2-Bolt Flanged

6.6 in L x 5.27 in W x 3.87 in H

DANFOSS / EATON MOTOR

101-1306-009

Straight Keyed

4-Bolt Square Flanged

6.6 in L x 3.38 in W x 3.31 in H

Product Questions & Answers (2)

Question by: Roger R on Apr 17, 2025, 8:52 PM
got a floor sweeper that needs a low-speed geroler motor. is this one the right kind of unit?
Answer by: Customer Support on Apr 19, 2025, 6:52 AM
For low-speed hydraulic drive work, this is a Char-Lynn H Series spool geroler motor. It’s commonly used on industrial sweepers and floor polishers, along with ag equipment like augers, harvesters, and seeders.
Question by: Johnny R on Jul 7, 2025, 8:55 PM
How tough is this Char-Lynn motor built? I'm gonna be usin' it pretty hard.
Answer by: Customer Support on Jul 9, 2025, 7:15 AM
Constructed from cast iron, this Char-Lynn motor is built to withstand demanding agricultural and industrial environments. It also features an increased shaft seal to minimize maintenance.
