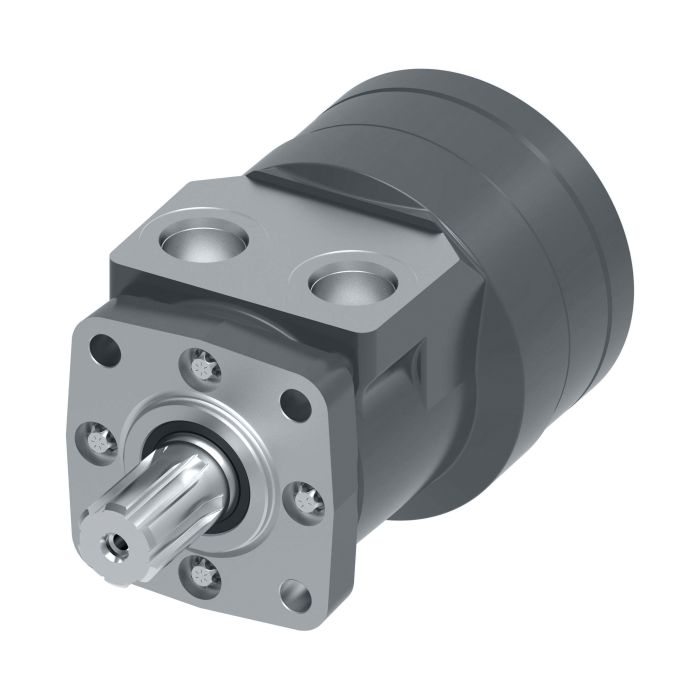

main product photo

CHAR-LYNN MOTOR 9.7 CID

Ask A Question

Description & Features

This Eaton Char-Lynn motor is a 9.7 CID spool geroler type, suitable for a variety of applications, including agricultural augers, food processing equipment, machine tools, harvesters and seeders.

Features of this Char-Lynn motor include a compact yet powerful design, extended bearing life, and increased shaft seal.

Constructed from cast iron, this hydraulic motor has a 57 litre per minute flow rate and a 301 newton metre torque rating.

SKU: 103-1060

Supplier Part Number (MPN): 103-1060-012

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
12
Dimensions
6.98 in L x 4.24 in W x 4.24 in H
Frame Size
165
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
S Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Kent S on Mar 27, 2025, 7:37 AM
Got a busted motor on my harvester and tryin to figure out if this one'll hold up to the workload. What kind of torque are we talkin here?
Answer by: Customer Support on Mar 28, 2025, 9:21 PM
At 301 newton metres of torque, this motor carries a solid punch for harvest equipment. Cast iron construction keeps it from wearing down fast under the kind of sustained load you'd expect on a harvester running long days. The S Series Spool Geroler design is part of what gives it that staying power, and the extended bearing life built into it means you're not pulling it apart every season.
