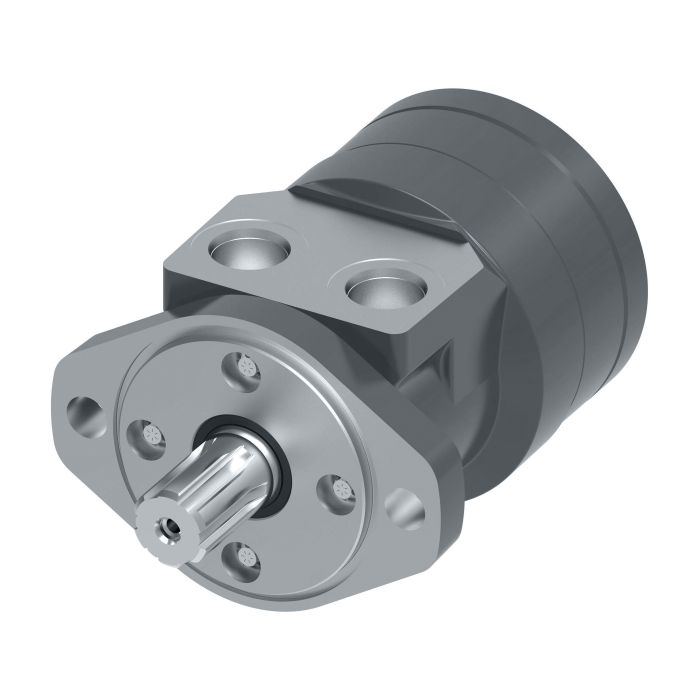

main product photo

CHAR-LYNN MOTOR

Ask A Question

Description & Features

Eaton Char-Lynn motor designed for a range of applications, including agricultural augers, food processing equipment, machine tools, harvesters and seeders.

This Char-Lynn motor features a compact yet powerful design, extended bearing life, and increased shaft seal integrity. Constructed from cast iron for durability, it offers a flow rate of 57 liters per minute and a torque rating of 333 newton meters. The product width measures 4.24 inches.

SKU: 103-1085

Supplier Part Number (MPN): 103-1085-012

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
12
Dimensions
7.08 in L x 4.24 in W x 5.27 in H
Frame Size
185
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
S Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (2)

Question by: Wayne C on Dec 6, 2025, 10:26 AM
torque rating on this unit is 333 Nm, that right? trying to figure out if it'll hold up on a grain auger setup we run pretty hard through harvest season
Answer by: Customer Support on Dec 8, 2025, 8:21 AM
At 333 newton metres of torque, it's built to handle the kind of load a working grain auger throws at it. The S Series Spool Geroler design is a solid fit for agricultural auger applications, and the extended bearing life on this motor means it can take sustained use without wearing down as fast as cheaper alternatives. For a hard-running harvest operation, that torque rating gives you real pulling power without having to step up to a larger frame.
Question by: Phil J on May 8, 2025, 7:56 AM
What kind of machines would this Char-Lynn motor be good for? I work on some older farm equipment and could use a reliable motor.
Answer by: Customer Support on May 10, 2025, 6:09 AM
It’s applicable for agricultural augers and seeders, along with food processing equipment and machine tools.
