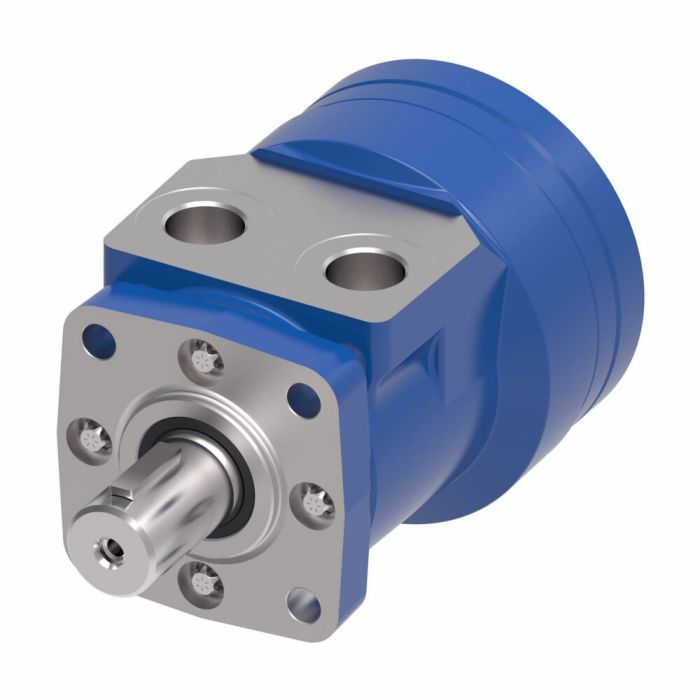

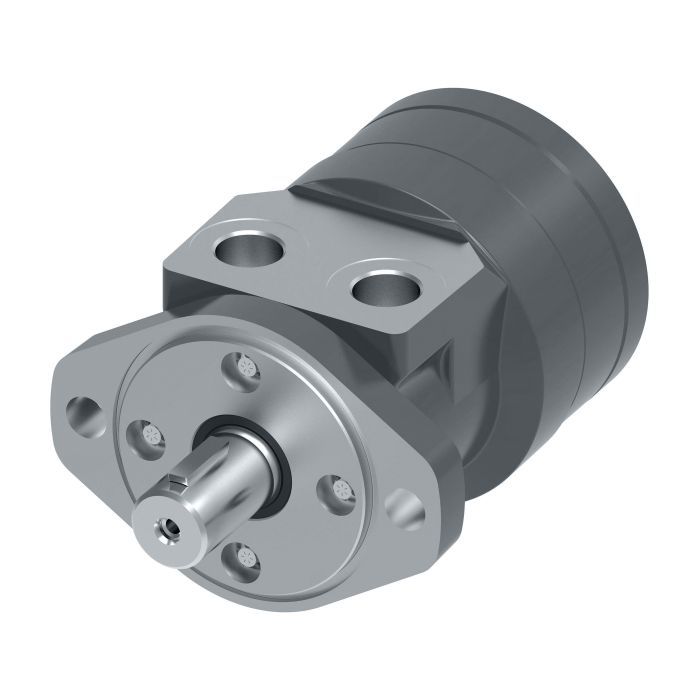

main product photo

CHAR-LYNN S MOTOR

Ask A Question

Description & Features

The Eaton Char-Lynn S Motor is a compact yet powerful hydraulic motor designed for a range of demanding applications. With a flow rate of 57 liters per minute and a torque rating of 333 newton meters, this Char-Lynn S Motor is constructed from durable cast iron.

This hydraulic motor is suitable for applications such as agricultural augers, food processing equipment, machine tools, harvesters, and seeders. Its design incorporates extended bearing life and an increased shaft seal.

SKU: 103-2029

Supplier Part Number (MPN): 103-2029-012

Alternate Part Numbers: C1JW33

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
With Check Valve Function
Color
Black
Design Code
12
Dimensions
7.08 in L x 4.24 in W x 5.27 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
185
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
NPTF
Seal Material
NBR
Series
S Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (2)

Question by: Ronnie P on Nov 13, 2025, 1:48 PM
got a hydraulic auger setup, is this Char-Lynn S motor even the right style of motor for that kind of job?
Answer by: Customer Support on Nov 15, 2025, 6:57 AM
Common uses for this S Series spool geroler motor include agricultural augers, along with harvesters and seeders, so it lines up well with that type of equipment.
Question by: Tommy P on Oct 16, 2025, 8:05 AM
Would this work alright on a seeder I'm fixin' to get up and runnin?
Answer by: Customer Support on Oct 17, 2025, 5:58 PM
This Char-Lynn S motor is applicable to agricultural seeders, along with other applications like augers, food processing equipment, and machine tools.
