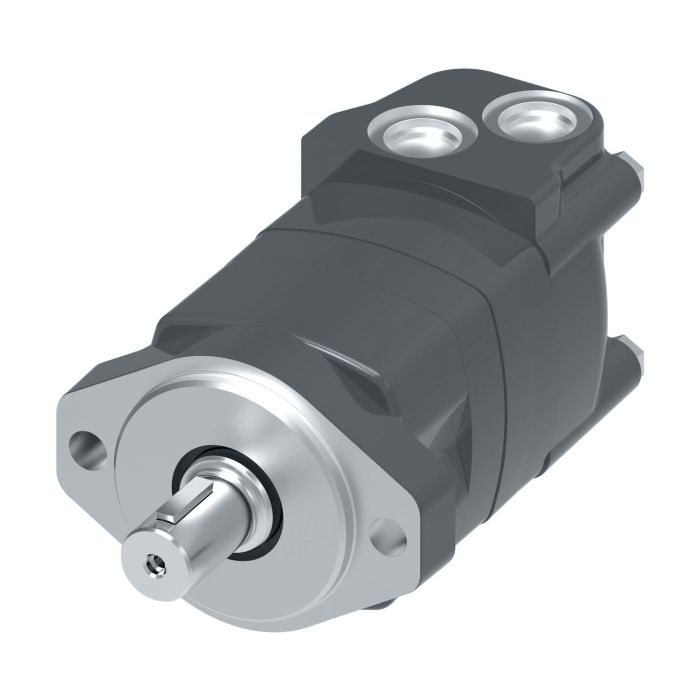

CHAR-LYNN MOTOR

Description & Features

This Char-Lynn motor is designed for robust performance and reliability in demanding hydraulic applications.

SKU: 104-1554-006

Supplier Part Number (MPN): 104-1554-006

Brand Danfoss	Bearing Type Tapered Roller	Check Valve Function With Check Valve Function	Color Black	Design Code 6	Dimensions 10.05 in L x 5.16 in W x 4.33 in H	Drain Port Dimension 7/16-20 UNF-2B SAE O-ring	Frame Size 305	Housing Material Iron	Motor Function 1-Speed	Mounting Type 2-Bolt Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Paint Information Low Gloss Black Primer	Painted With Painted	Port Location End, Aligned	Port Type UNF-2B, SAE O-ring	Seal Material NBR	Series 2000 Series	Shaft Type Straight Square Keyed	Valve Type Disc

Question by: Norm M on Feb 18, 2026, 11:32 AM

Will this Char-Lynn motor hold up in a hydraulic system running pretty much non-stop?

Answer by: Customer Support on Feb 20, 2026, 7:02 AM

Designed for robust performance, this Char-Lynn motor should offer reliable service even in demanding, continuous-use hydraulic applications.
