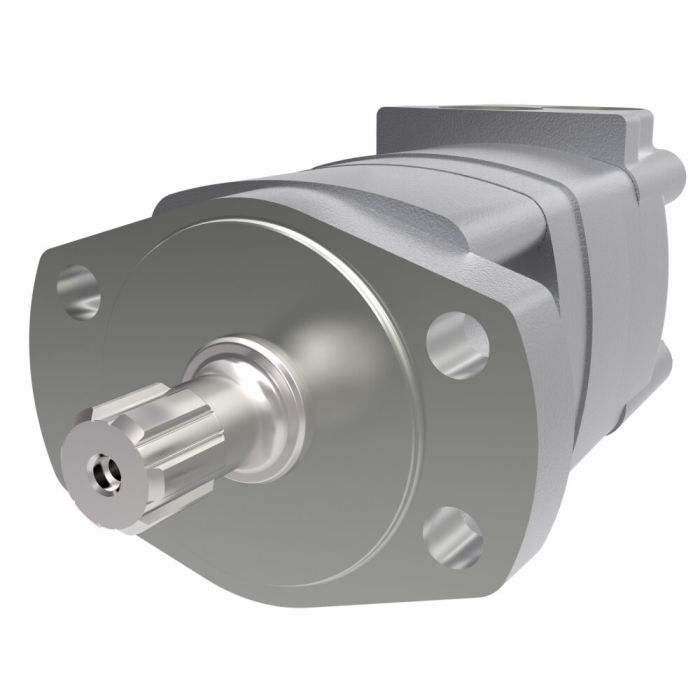

main product photo

CHAR-LYNN MOTOR

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler motor is crafted for high efficiency providing energy savings in various applications such as swing motors brush cutters & mowers and harvesting equipment. This motor stands out with the lowest pressure drop in the industry ensuring reliable performance even in demanding conditions.

Constructed from durable cast iron this motor is designed to deliver a torque rating of 540 newton metre. Available in standard wheel or bearingless configurations this motor accommodates diverse operational needs.

Engineered as a highly-efficient Geroler motor it significantly enhances energy efficiency. Durability and performance are combined in this robust design ensuring long-lasting functionality in industrial contexts.

Supplier Part Number: 104-1561-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
9 in L x 5.34 in W x 4.45 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Disc

Similar Products

Model Number Mounting Type Dimensions Price Action
DANFOSS / EATON CHAR-LYNN MOTOR 11.9 CI/REV

104-1019

2-Bolt Flanged

8 in L x 5.16 in W x 6.96 in H

Product Questions & Answers (2)

Question by: Jimmy M on Feb 4, 2026, 9:57 PM
motor puts out 540 newton metres of torque -- is that enough grunt for running a brush cutter or a swing motor application?
Answer by: Customer Support on Feb 6, 2026, 7:35 PM
For both of those uses, 540 Nm is well within the range you'd want. Brush cutters and swing motors are actually listed applications for this unit, so it's not a stretch to say it was built with exactly that kind of work in mind. The cast iron construction holds up to the kind of continuous loading those jobs put on a motor, and the Geroler design keeps efficiency high so you're not burning excess flow to get the torque you need.
Question by: Bobby S on Jun 15, 2025, 10:31 AM
Is this Char-Lynn motor meant to be used in brush hog type mowers?
Answer by: Customer Support on Jun 16, 2025, 3:22 PM
It's designed for brush cutters and mowers, along with swing motors and harvesting equipment.
