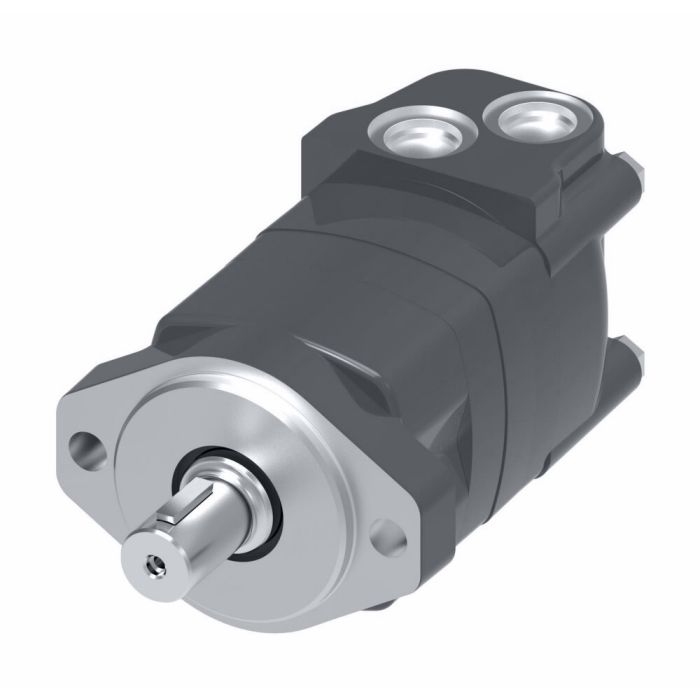

main product photo

CHAR-LYNN MOTOR

Ask A Question

Description & Features

The Eaton Char-Lynn motor, an industry-leading hydraulic component, is engineered for energy efficiency and reliability. With a highly-efficient Geroler design, it achieves the lowest pressure drop in the industry, saving energy and optimizing performance. This versatile motor is ideal for applications such as swing motors, brush cutters, mowers, and harvesting equipment. Crafted from durable cast iron, it withstands demanding environments, ensuring longevity and robust performance.

Offering a substantial torque rating of 775 newton meters and a flow rate of 75 liters per minute, this hydraulic motor delivers powerful and consistent performance. Available in both standard and bearingless configurations, it provides flexibility based on specific application needs.

SKU: 104-1769

Supplier Part Number (MPN): 104-1769-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
10.69 in L x 5.34 in W x 4.45 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
395
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Similar Products

Model Number Shaft Type Mounting Type Dimensions Price Action
DANFOSS / EATON MOTOR

104-1820

Straight Square Keyed

2-Bolt Flanged

10.69 in L x 5.16 in W x 4.33 in H

Product Questions & Answers (1)

Question by: Glen S on May 7, 2025, 7:30 PM
Running a brush cutter setup and need to know if this motor can handle the torque demands. What's it rated for?
Answer by: Customer Support on May 9, 2025, 7:29 PM
At 775 newton metres of torque, it's got plenty of muscle for brush cutter and mower applications. The 2000 Series Geroler design is known for being one of the lower pressure drop motors in its class, which means you're not burning unnecessary energy to get that torque to the ground. Cast iron construction holds up well under the kind of sustained load that cutting equipment puts on a motor.
