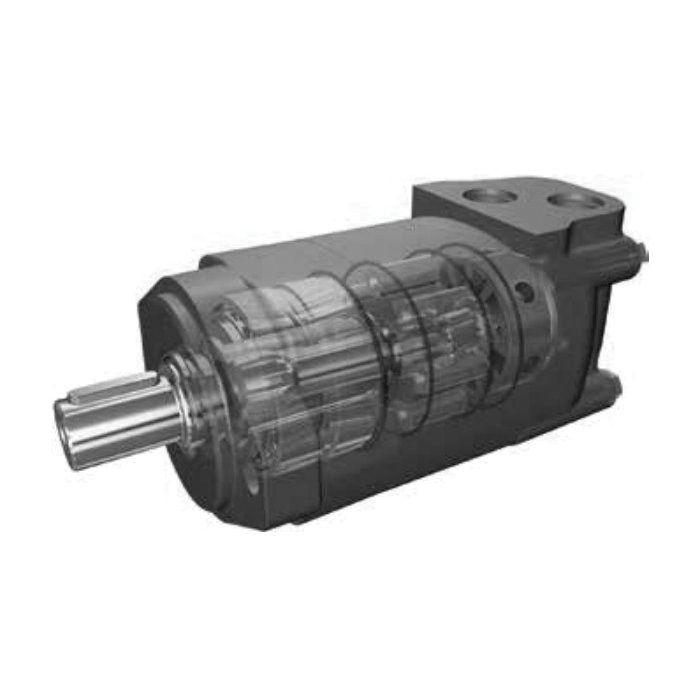

Danfoss / Eaton 2K M02119AC15AA0100010AA0000AAAAF

Ask A Question

Description & Features

Designed for demanding mobile hydraulic applications, the Eaton Char-Lynn 2K Series Geroler motor is well suited for swing motors, brush cutters, mowers, and harvesting equipment. Cast iron construction provides durability in high-cycle industrial environments, while the highly efficient Geroler disc design delivers notable energy savings through reduced internal pressure drop.

The Danfoss / Eaton 2K M02119AC15AA0100010AA0000AAAAF is available in standard, wheel, or bearingless configurations, offering flexibility across a range of mounting and drivetrain requirements. With a torque rating of 540 Nm and a flow rate capacity of 75 litres per minute, this motor is built for consistent performance in mid-to-high torque mobile applications.

SKU: 104-1774

Supplier Part Number (MPN): 104-1774-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
9 in L x 5.16 in W x 4.33 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Size
32 mm Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Disc

Product Questions & Answers (3)

Question by: Dale A on Aug 31, 2025, 11:19 AM
got a brush cutter swing motor setup, is this Char-Lynn 2000 series one meant for that kind of job
Answer by: Customer Support on Sep 1, 2025, 11:44 AM
For equipment like swing motors on brush cutters and mowers, this motor is a match since those are listed applications, along with harvesting equipment.
Question by: Ronnie H on Apr 27, 2025, 8:17 AM
Will this Eaton Char-Lynn motor work for swing applications on brush cutters?
Answer by: Customer Support on Apr 28, 2025, 8:06 PM
Eaton Char-Lynn 2000 series motors like this one are often found as swing motors, and also in brush cutter and mower applications, so it should do the job.
Question by: Dwight F on Aug 13, 2025, 8:29 AM
Running a swing motor application and need something that won't rob efficiency from the system. Does this unit actually deliver on that or is it just marketing talk?
Answer by: Customer Support on Aug 14, 2025, 5:48 PM
Geroler-style motors have a well-earned reputation for tight internal efficiency, and this one carries the lowest pressure drop rating in the Char-Lynn 2000 Series lineup. Less pressure drop means less energy wasted pushing fluid through the motor, so your system holds onto more of what the pump puts out. At 540 newton metres of torque and a 75 litre per minute flow rate, it's got real output to back that up. For swing motor duty where efficiency losses compound over a full workday, that matters a good bit.
