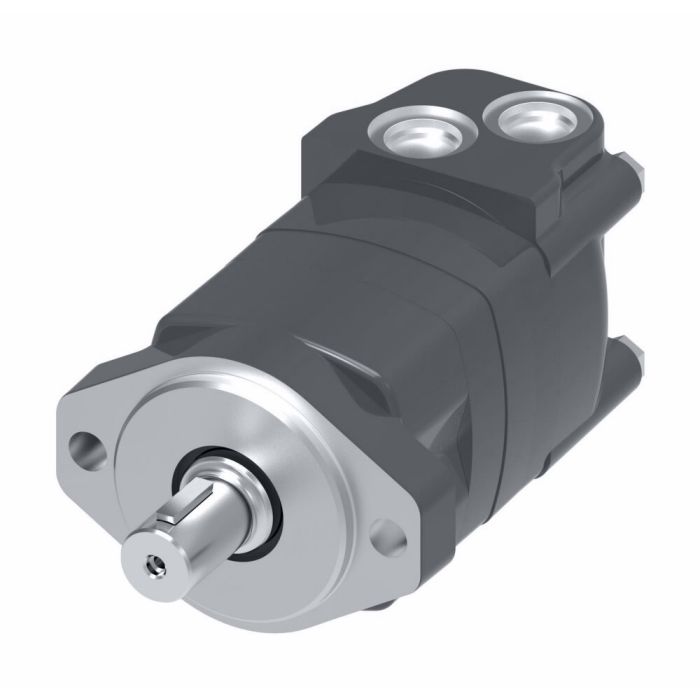

DANFOSS / EATON 2000 SERIES MOTOR

Ask A Question

Description & Features

Designed for efficiency and versatility, the Eaton Char-Lynn 2000 Series Motor is an excellent choice for applications such as swing motors, brush cutters, mowers, and harvesting equipment. This robust motor is constructed from durable cast iron, ensuring longevity and reliability in demanding industrial environments.

Featuring the lowest pressure drop in the industry, the highly efficient Geroler motor design of the Eaton 2000 Series provides significant energy savings. It supports a flow rate of up to 75 liters per minute and delivers an impressive torque rating of 660 newton meters. Available in standard, wheel, or bearingless configurations, this motor offers flexibility to meet a wide range of requirements.

SKU: 104-1775

Supplier Part Number (MPN): 104-1775-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
9.36 in L x 5.16 in W x 4.33 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
245
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
2000 Series
Shaft Size
32 mm Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Disc

Product Questions & Answers (2)

Question by: Melvin L on Jun 3, 2025, 7:26 PM
Running a brush cutter setup and need something that can handle the torque without giving out on me. What's this motor rated at?
Answer by: Customer Support on Jun 5, 2025, 6:45 AM
At 660 newton metres of torque, it holds up well in demanding rotary applications like brush cutters and mowers. The Geroler design also keeps efficiency high, so you're not bleeding off energy just to get the job done. Cast iron construction means it's built to take the kind of punishment that comes with that type of work.
Question by: Troy C on Nov 3, 2025, 6:34 PM
Is this motor gonna work for swing applications, like for a mower?
Answer by: Customer Support on Nov 5, 2025, 10:05 AM
Absolutely. This Danfoss/Eaton 2000 series motor is used in swing motors, brush cutters, and harvesting equipment.
