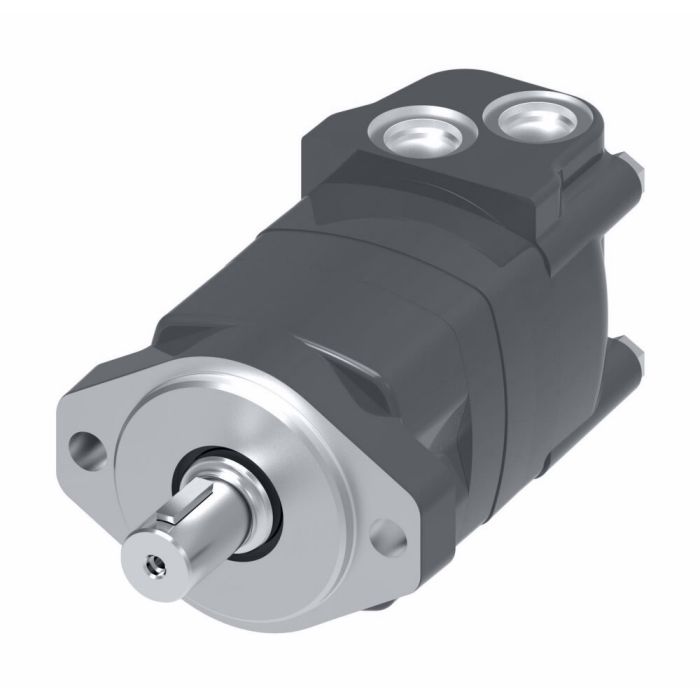

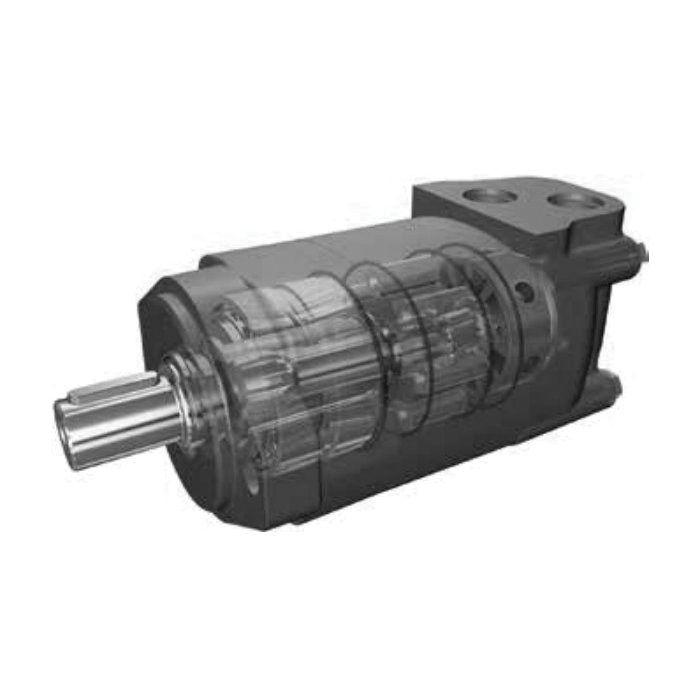

main product photo

2K Motor/PAINTED ENVIROMENTAL BLK/M02240

Ask A Question

Description & Features

Designed for demanding applications like swing motors, brush cutters, mowers, and harvesting equipment, the Char-Lynn 2000 Series Disc Geroler motor offers industry-leading efficiency. This motor, available in standard, wheel, or bearingless configurations, is renowned for having the lowest pressure drop in the market, ensuring optimal energy savings. With a robust torque rating of 775 newton metres, it excels in providing the necessary force for heavy-duty use. Constructed from durable cast iron, it promises longevity and reliability in harsh environments.

The 2K Motor/PAINTED ENVIROMENTAL BLK/M02240 is engineered to handle a maximum flow rate of 75 litres per minute, making it a versatile choice for various industrial applications. Its premium Geroler technology ensures smooth and efficient performance, making it an ideal solution for those in need of a high-performance hydraulic motor.

SKU: 104-3358-006

Supplier Part Number (MPN): 104-3358-006

Alternate Part Numbers: 104-3358

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
11.66 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
395
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Black Environmental-Coated
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (2)

Question by: Daryl R on Oct 31, 2025, 10:41 AM
Got a brush cutter setup that's been eating through motors, been running a cheaper brand and I'm just wore out with it. This the kind of motor that'll hold up to that kinda daily punishment?
Answer by: Customer Support on Nov 1, 2025, 3:46 PM
Brush cutter work is rough on motors, no question about it. The 2000 Series Disc Geroler is built from cast iron and rated at 775 newton metres of torque, so it's got the muscle for that kind of load. Char-Lynn engineered this line specifically for brush cutters and mowers, so you're not forcing it into a role it wasn't meant for. The Geroler design also runs more efficiently than a lot of competing motors, which tends to reduce heat buildup over long working days. It's a purpose-built fit for exactly what you're describing.
Question by: Floyd W on Mar 30, 2026, 6:16 AM
What kind of machines is this motor typically found in?
Answer by: Customer Support on Mar 31, 2026, 4:33 PM
This Char-Lynn 2000 series motor is often used in equipment like swing motors, brush cutters, mowers, and even harvesting equipment.
