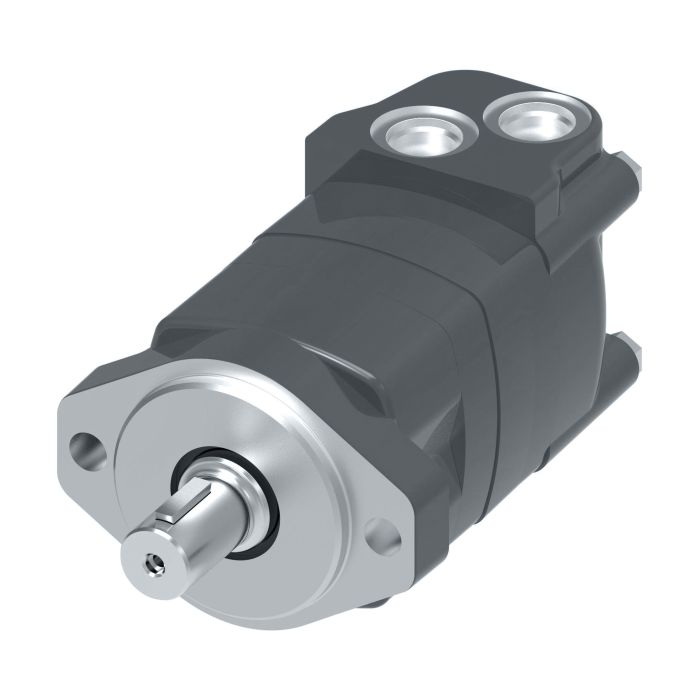

M02062AC01AA0100011AD0000ABAAF CHAR-LYNN

Ask A Question

Description & Features

The M02062AC01AA0100011AD0000ABAAF CHAR-LYNN is a hydraulic component designed for demanding industrial applications.

SKU: 104-3861-006

Supplier Part Number (MPN): 104-3861-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
8.49 in L x 5.16 in W x 4.33 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
100
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
FKM
Series
2000 Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Disc

Product Questions & Answers (2)

Question by: Lee W on Sep 15, 2025, 10:24 AM
what brand makes this unit, and is 104-3861-006 the right part number to use when ordering?
Answer by: Customer Support on Sep 16, 2025, 3:13 PM
Char-Lynn is the manufacturer on this one. The part number 104-3861-006 serves as both the SKU and the supplier part number, so using either reference when placing an order should pull up the same item.
Question by: Lee M on May 19, 2025, 5:24 PM
Wondering what this Char-Lynn part is typically used for?
Answer by: Customer Support on May 21, 2025, 6:17 AM
Designed for demanding industrial applications, the M02062AC01AA0100011AD0000ABAAF CHAR-LYNN serves as a crucial hydraulic component.
