M02240AC04AA0100016000000AAAAF

Ask A Question

Description & Features

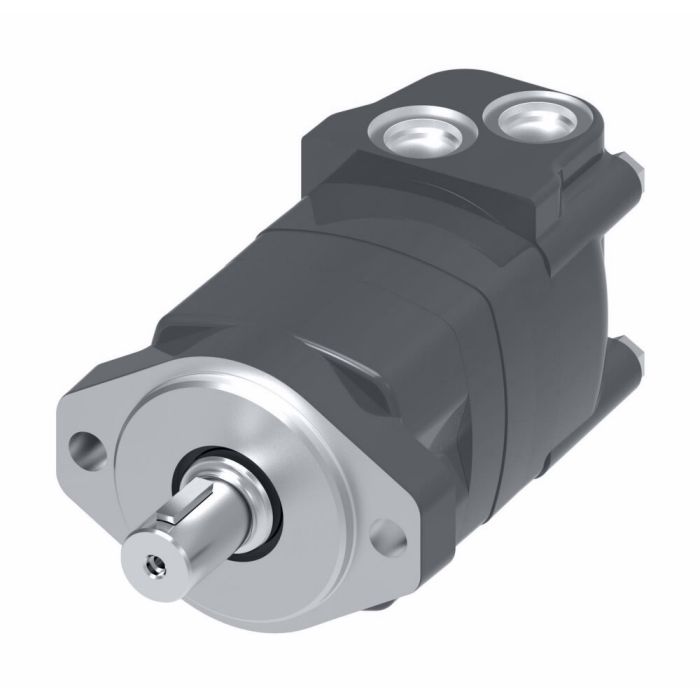

The Danfoss Eaton Char-Lynn 2000 Series Disc Geroler Standard motor is engineered for high efficiency featuring the lowest pressure drop in the industry. This cast iron motor is available in standard wheel or bearingless configurations making it versatile for various industrial applications including swing motors brush cutters mowers and harvesting equipment.

MPN: M02240AC04AA0100016000000AAAAF

Supplier Part Number: 104-3993-006

This highly-efficient Geroler motor offers energy savings and a torque rating of 775 newton metres. Its durable construction ensures reliability in demanding environments. Designed without an adjustable end or check valve this motor simplifies maintenance while delivering consistent performance. Suitable for low-speed applications this motor does not include additional components such as blades batteries or switches. Its compact width of 5.16 inches allows for easy integration into existing systems. With a focus on functionality and durability the Danfoss Eaton Char-Lynn 2000 Series Geroler motor is a dependable choice for those seeking improved energy efficiency and reliable torque performance in industrial machinery.

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
11.66 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
395
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Dwight A on Jun 27, 2025, 7:26 AM
torque on this one says 775 newton metres, that enough for running a brush cutter or swing motor without bogging down?
Answer by: Customer Support on Jun 28, 2025, 10:02 AM
For brush cutters and swing motors, 775 newton metres is a solid output. Those applications typically demand strong, steady torque at lower speeds, and that's exactly where this motor delivers. It's a low-speed Geroler design, so the torque curve stays usable without needing to push high RPM to get work done. You're not going to find yourself short on grunt for either of those jobs.
