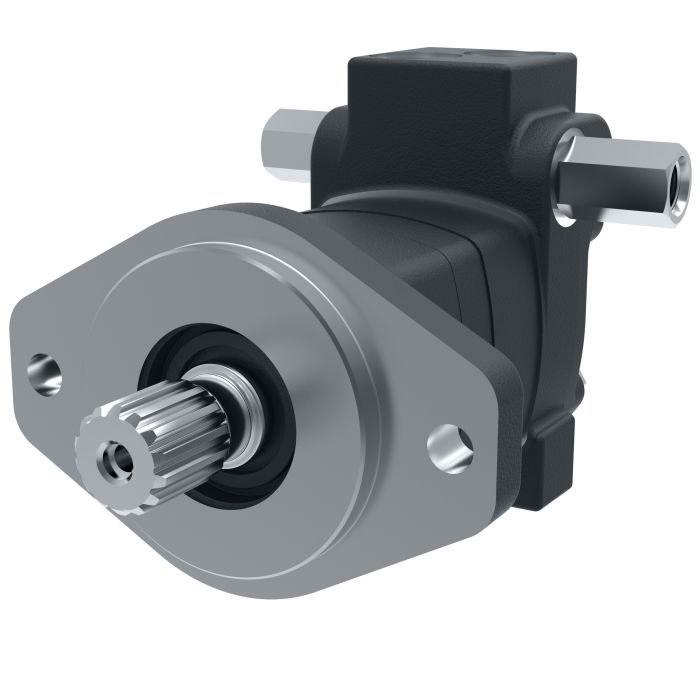

main product photo

CHARLYNN 2000 SER MOTOR

Ask A Question

Description & Features

Designed for swing motors, brush cutters, mowers, and harvesting equipment, this cast iron hydraulic motor delivers reliable low-speed, high-torque performance across demanding mobile applications. The Char-Lynn 2000 Series Motor uses a disc Geroler design that maintains consistent efficiency with a notably low pressure drop compared to conventional motor designs.

Rated at 295 Nm of torque and accommodating flow rates up to 75 litres per minute, it suits applications where precise, efficient power transmission is essential. Available in standard, wheel, or bearingless configurations, the motor offers flexibility for different installation requirements without compromising performance.

Cast iron construction provides durability in harsh field environments, and the Geroler mechanism contributes to measurable energy efficiency across extended duty cycles.

SKU: 104-4456-006

Supplier Part Number (MPN): 104-4456-006

Specifications

Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
8.74 in L x 6.96 in W x 4 in H
Displacement
6.2 cu-in
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Flow Rate
20 gpm
Frame Size
100
Housing Material
Iron
Inlet Pressure
3000 psi
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Operating Temperature
-30 to 180 deg F
Orbital Gearwheel Set
Free Running
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Staggered
Port Size
7/8 in
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
2000 Series
Shaft Size
1-1/4 in
Shaft Type
Splined
Speed Rating
742 rpm
Torque Rating
2630 in-lb
Valve Type
Disc

Product Questions & Answers (2)

Question by: Danny S on Aug 28, 2025, 8:43 PM
got a swing motor application running a brush cutter setup -- would the 2000 series hold up torque-wise for that kind of work?
Answer by: Customer Support on Aug 30, 2025, 10:19 AM
At 295 newton metres of torque and flow rates up to 75 litres per minute, the 2000 Series handles swing motor and brush cutter applications well. Cast iron construction keeps it solid through the kind of rough field conditions those setups tend to throw at equipment. It was specifically built with those use cases in mind, so you're not stretching it outside its intended range.
Question by: Wes A on Jun 29, 2025, 11:29 AM
Would this motor work okay on a mower that runs pretty much all day during the summer?
Answer by: Customer Support on Jun 30, 2025, 8:24 PM
Designed for demanding mobile applications like brush cutters and mowers, this Char-Lynn 2000 series motor uses a cast iron construction that should hold up well to extended duty cycles.
