MOTOR

Ask A Question

Description & Features

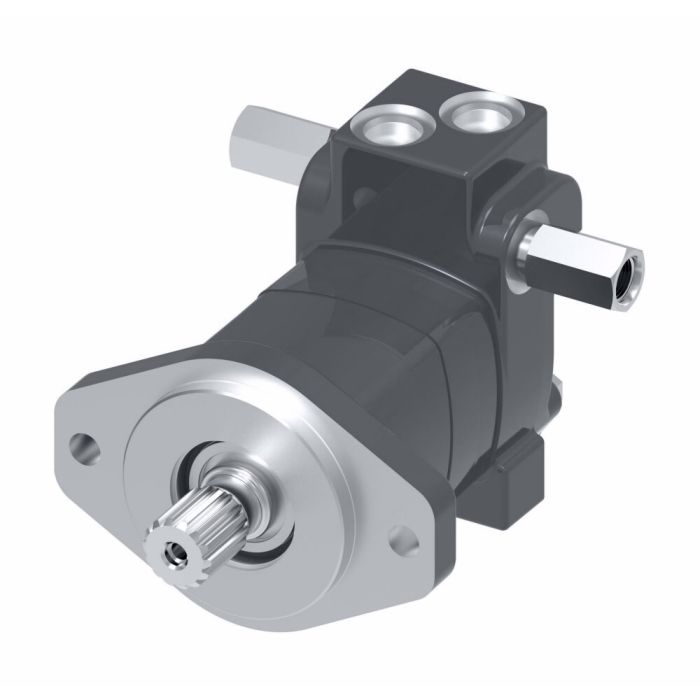

Designed for demanding mobile and industrial applications, the Char-Lynn 2000 Series Disc Geroler Motor from Danfoss delivers reliable low-speed, high-torque performance in a cast iron construction. With a torque rating of 218.3 Nm and a flow rate of approximately 76.3 litres per minute, it suits equipment where consistent rotational force and efficiency are priorities.

Available in standard, wheel, or bearingless configurations, this motor is well-suited for swing motor assemblies, brush cutters, mowers, and harvesting equipment. The Geroler disc design contributes to a low pressure drop across the motor, supporting energy-efficient performance in demanding duty cycles. The range of mounting configurations provides flexibility across a variety of machine types and installation requirements.

SKU: 104-4647-006

Supplier Part Number (MPN): 104-4647-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
8.74 in L x 6.96 in W x 4 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
100
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Similar Products

Model Number Shaft Size Dimensions Price Action
2K CHAR LYNN MOTOR

104-3654-006

7/8 in Dia

8.365 in L x 6.96 in W x 4 in H

Product Questions & Answers (2)

Question by: Scott D on Jun 21, 2025, 2:47 PM
What kind of applications is this motor typically used for?
Answer by: Customer Support on Jun 22, 2025, 3:36 PM
Harvesting equipment, swing motors, and brush cutters are some of the common applications for this Char-Lynn 2000 series motor.
Question by: Danny C on Jan 2, 2026, 7:14 AM
Running a brush cutter setup and need something that can handle real torque without falling apart after a season. This the right motor for that kind of work?
Answer by: Customer Support on Jan 3, 2026, 2:33 PM
At 218.3 Nm of torque and a cast iron build, it holds up well in brush cutter applications. The Geroler disc design keeps pressure drop low, which matters when you're running hard through heavy growth and need the motor pulling steady without robbing the system of efficiency. It's listed specifically for brush cutters and mowers, so the fit makes sense for that kind of duty.
