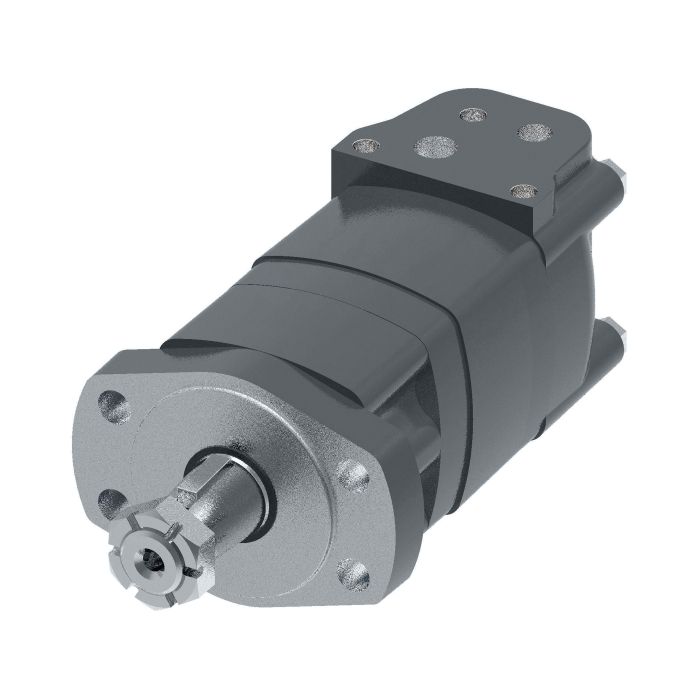

main product photo

M02119AJ03AB0100010AB0000AFAAF

Ask A Question

Description & Features

Designed for versatility in industrial applications, the Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Standard motor excels as a swing motor and is ideal for use in brush cutters, mowers, and harvesting equipment. With a highly-efficient Geroler design, this motor ensures significant energy savings and boasts the lowest pressure drop in the industry, enhancing performance and reliability.

Constructed from durable cast iron, this motor can handle a flow rate of 75 litres per minute, making it suitable for demanding tasks. It offers a torque rating of 540 newton metres, providing robust power for various applications. Available in standard, wheel, or bearingless configurations, this motor delivers flexibility to meet specific operational needs.

SKU: 104-4879-006

Supplier Part Number (MPN): 104-4879-006

Specifications

Brand
Char-Lynn®
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
9.25 in L x 5.34 in W x 4.45 in H
Drain Port Dimensions
7/16-20 UNF-2B SAE O-ring Port
Dust Seal
Standard
Housing Material
Iron
Main Port Dimensions
Port A: 1/2 in, Port B: 5/8 in Drilled Hole, 3x 3/8-16 UNC-2B Block Mounting Threads
Main Port Style
Sideport - Staggered
Main Port Thread Type
Manifold
Motor Function
Standard
Motor Type
Standard
Mounting Flange Dimensions
Pilot Dia x Height - 82.6 x 2.8, 106.4, 13.6 3.25 x 0.11, 4.19, 0.54
Mounting Type
4-Bolt Magneto Flange
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Output Shaft Type
Tap 1-1/4 in S 5/16 x 1 in
Painted
Yes
Port Location
Side
Rotation Direction
Clockwise
Seal Kit
61258-000
Seal Material
Nitrile
Seal Option
Standard
Series
2000 Series
Shaft Dimensions
1-1/4 in Dia, 1: 8SAE J501, 1-20 UNEF-2A Thread in Shaft End
Shaft Key
Square Key, 5/16 x 1 in
Shaft Type
Keyed
Special Features Assembly
Standard
Valve Type
Disc

Product Questions & Answers (1)

Question by: Melvin S on May 20, 2025, 8:59 PM
I'm looking for a swing motor for my brush cutter, is this a good fit?
Answer by: Customer Support on May 22, 2025, 7:21 PM
This Danfoss/Eaton Char-Lynn 2000 series motor is indeed well-suited for swing motor applications, as well as brush cutters and mowers, as noted in the description. It should work great for your needs.
