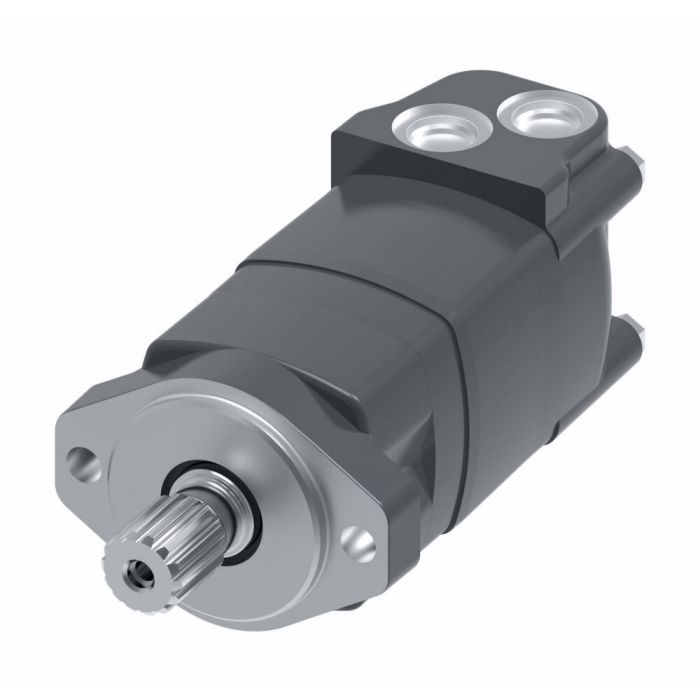

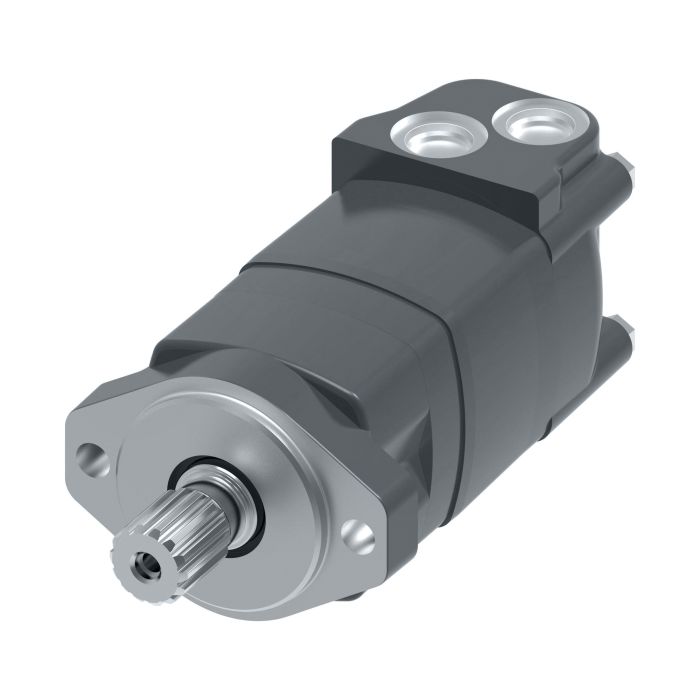

Danfoss / Eaton 2K Motor

Ask A Question

Description & Features

Built for demanding mobile applications, the Danfoss / Eaton 2K Motor is a cast iron, low-speed Geroler-type hydraulic motor designed for aerial work platforms and turf care equipment. Its disc Geroler mechanism delivers notably low pressure drop, contributing to efficient energy use across the hydraulic circuit.

Rated at a maximum flow of 75 litres per minute and a torque output of 845 Newton metres, this motor handles high-load, low-speed requirements with consistent performance. Available in standard, wheel, and bearingless configurations under the Char-Lynn sub-brand, it offers flexibility to suit varied mounting and drive arrangements.

SKU: 104-4960-006

Supplier Part Number (MPN): 104-4960-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
6
Dimensions
11.37 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
490
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (2)

Question by: Rhonda M on Nov 12, 2025, 8:11 AM
motor puts out 845 newton metres of torque -- is that enough grunt for a heavy aerial work platform running at low speed all day?
Answer by: Customer Support on Nov 14, 2025, 6:29 AM
For low-speed, high-load work like lifting on an aerial platform, 845 Newton metres is a solid torque figure. The 2K runs as a Geroler-type motor, which means it's built around that kind of application. Low-speed grunt is exactly where this design earns its keep. Pair that with a max flow rate of 75 litres per minute and you've got a motor sized for the sustained, heavy-duty demands that aerial platforms put on a hydraulic circuit.
Question by: Duane F on Feb 10, 2026, 8:55 AM
What kinda applications is this motor really good for?
Answer by: Customer Support on Feb 12, 2026, 7:13 AM
This Danfoss/Eaton 2K motor is particularly well-suited for demanding mobile applications like aerial work platforms and turf care equipment.
