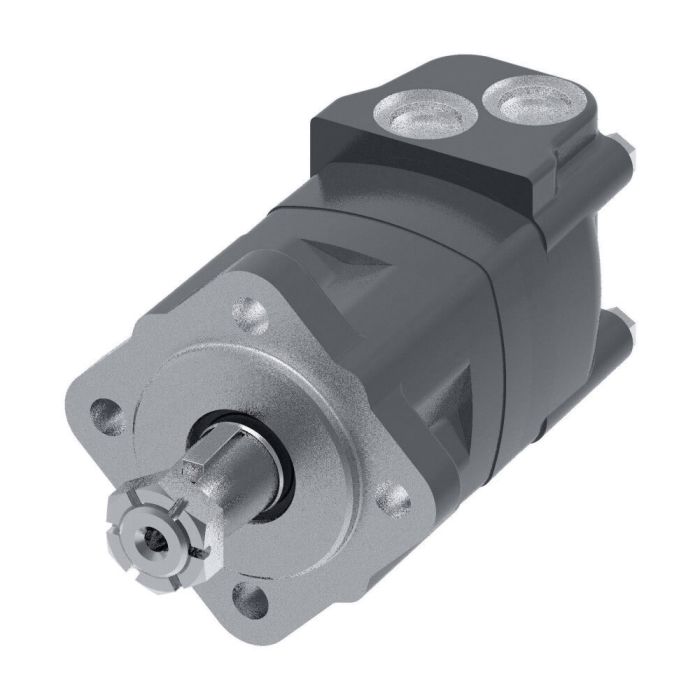

Char-Lynn 2k Motor

Ask A Question

Description & Features

Experience the unparalleled efficiency of the Char-Lynn 2k Motor, designed with a highly-efficient Geroler mechanism that ensures optimal energy savings. Known for its versatility, this motor offers both wheel and bearingless configurations to meet diverse industrial needs. With the lowest pressure drop in the industry, it guarantees seamless performance in demanding environments. Ideal for low-speed applications, the Char-Lynn 2k Motor is a reliable choice for those seeking durability and efficiency.

SKU: 104-5032-006

Supplier Part Number (MPN): 104-5032-006

Specifications

Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Displacement
18.71 cu-in
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Flow Rate
20 gpm
Frame Size
305
Housing Material
Iron
Inlet Pressure
3000 psi
Motor Function
1-Speed
Mounting Type
4-Bolt Flanged
Operating Temperature
-30 to 180 deg F
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Size
7/8 in
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
2000 Series
Shaft Size
1-1/4 in
Shaft Type
Splined
Speed Rating
246 rpm
Torque Rating
6750 in-lb
Valve Type
Disc

Product Questions & Answers (2)

Question by: Connie P on Dec 30, 2025, 8:02 AM
Does this motor come in different setup options, or is it just one fixed configuration?
Answer by: Customer Support on Dec 31, 2025, 4:17 PM
Two configurations are available, wheel mount and bearingless, so it can fit into different equipment setups depending on what your application calls for. Both fall under the standard 2000 Series design, so you get the same Geroler efficiency either way.
Question by: Rhonda L on Jul 17, 2025, 2:21 PM
Reckon this Char-Lynn 2k motor would hold up okay in a dusty environment, like a sawmill?
Answer by: Customer Support on Jul 18, 2025, 5:31 PM
Designed with a highly-efficient Geroler mechanism, this motor should offer reliable performance even in demanding environments, though keeping it clean will certainly help prolong its life.
